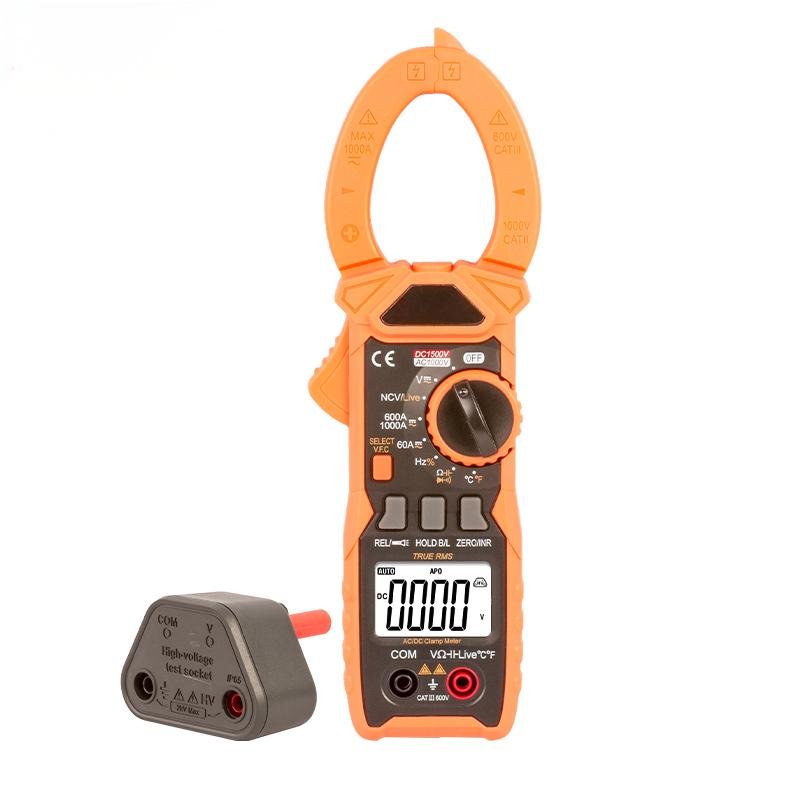

The DC 1500V AC DC 1000A True RMS Digital Clamp Multimeter is a high-performance measuring tool with 5999 counts, designed for accurate and versatile electrical testing. It features True RMS technology, ensuring precise readings for both sinusoidal and non-sinusoidal signals, making it reliable for professional and industrial applications.
Equipped with a clear LCD display, it supports functions like live NCV, V.F.C, surge current detection, اختبار الصمام الثنائي, data retention, backlit display, and automatic shutdown. Its jaw opening is φ40mm, suitable for various wire sizes, and it runs on two AAA batteries. Weighing about 313g and sized at 2307540mm, it’s compact and portable.
Whether for electrical maintenance, industrial testing, or troubleshooting, this DC 1500V AC DC 1000A True RMS Digital Clamp Multimeter delivers stable performance and multiple features, meeting the diverse needs of technicians and engineers.
| Function/Model | Range | دقة |
|---|---|---|
| DC voltage | 600mV/6V/60V | ±(0.5%+7) |
| 600V/1500V | ±(1.0%+10) | |
| AC voltage | 6V/60V | ±(1.0%+10) |
| 600V/1000V | ±(1.0%+12) | |
| Low impedance AC voltage | 6V/60V | ±(1.0%+10) |
| 300V | ±(1.0%+12) | |
| DC current | 60A/600A/1000A | ±(4.0%+10) |
| 60A/600A/1000A | ±(4.0%+10) | |
| Resistance | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ | ±(1.0%+5) |
| 20مΩ | ±(1.5%+15) | |
| 60مΩ | ±(2.5%+20) | |
| السعة | 1nF | ±(5.0%+40) |
| 10nF/100nF/1uF/10uF/100uF/1mF/10mF | ±(5.0%+10) | |
| تكرار | 10Hz~10MHz | ±(0.3%+3) |
| Duty cycle | 10.0%~90.0% | ±(0.3%+3) |
| Temperature | (-20~1000)°C/(-4~1832)°F (Standard 250°C probe) | ±(2.0%+5) |

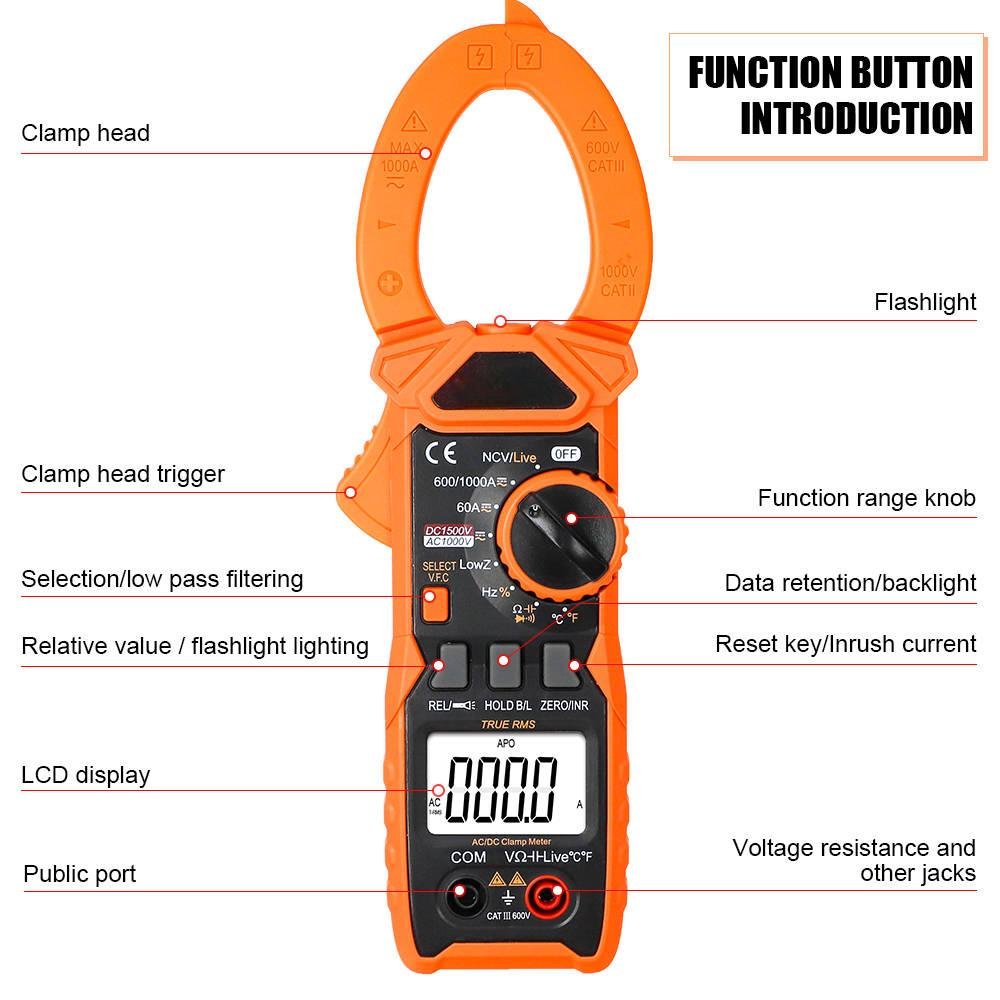

| General functions | |||
|---|---|---|---|
| Display mode | شاشات الكريستال السائل | Reset key | √ |
| Max display | 5999 | Relative value | √ |
| Diode/on-off | √ | Working temperature | (0~40)درجة مئوية <75%ر.س |
| NCV | √ | Storage humidity | (-10~50)درجة مئوية <80%ر.س |
| Data retention | √ | Over range display | Highest display OL |
| Backlit display | √ | AC frequency response | 40~1kHz |
| Low voltage | √ | Jaw opening | φ40mm |
| Line of fire judgment | √ | Maximum traverse | φ39mm |
| Flashlight lighting | √ | Input impedance | 10مΩ |
| Automatic shutdown | √ | مزود الطاقة | Two AAA batteries |
| V.F.C | √ | Product size | 230*75*40مم |
| Surge current | √ | Product weight | About 313g |
