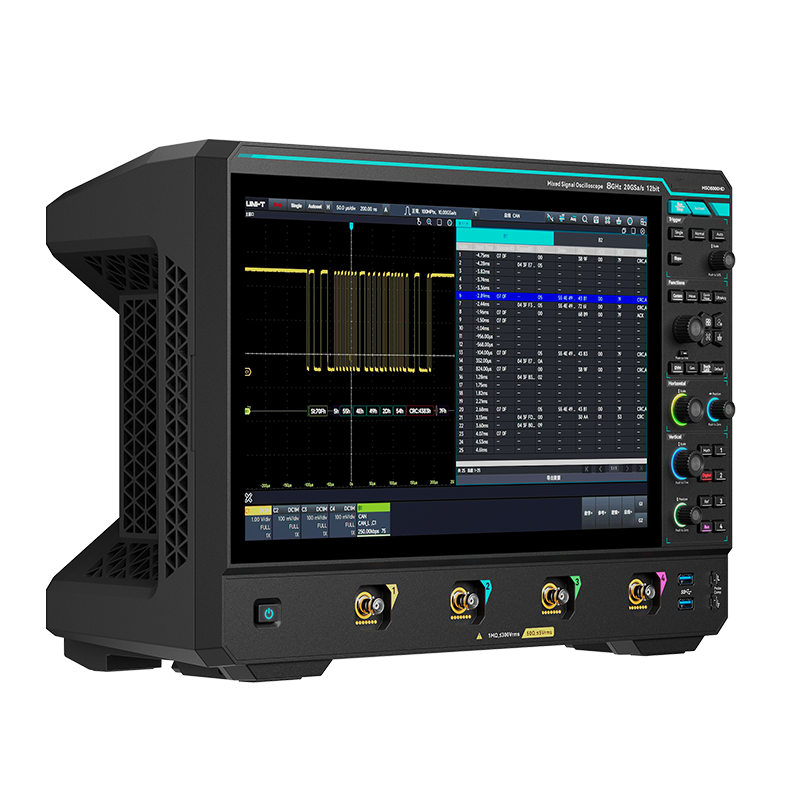

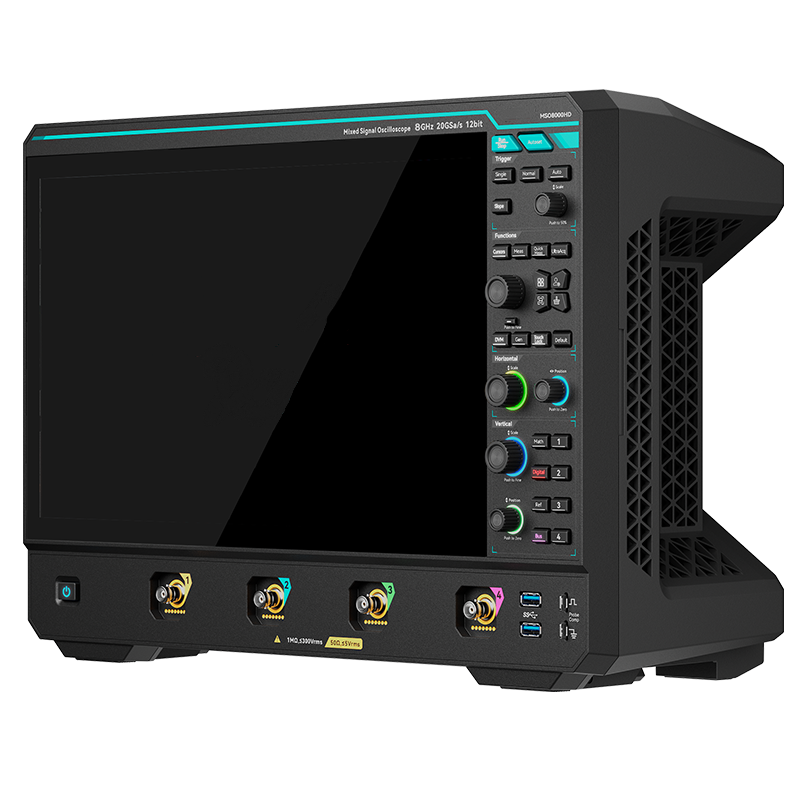

The High-resolution oscilloscope 8GHz/5GHz 1007004 provides two bandwidth options (8GHz and 5GHz), with a standard 20GSa/s sampling rate and 12-bit vertical resolution across all models. It uses Uni-T’s self-developed oscilloscope analog front-end chipset, which substantially optimizes performance and reduces background noise—delivering strong advantages in high-speed and high-dynamic-range signal testing.
You surely aim for outstanding R&D results, which requires exploring more data from new perspectives, and the MSO8000HD supports this goal. It acts like a clear window, letting you gain clear insights into various issues during R&د. This oscilloscope supports up to 4 channels, equipped with an R12™ 12-bit ADC that boosts to 16-bit resolution via ERES. It has a maximum 2.5GSa/s sampling rate, 100Mpts/CH memory depth and 1,000,000wfms/s waveform capture rate, ensuring high-quality waveform analysis.
It supports 9 serial protocol decodings and 12 power analysis functions, plus remote control via WebServer. It excels in testing and analysis tasks like high-precision power testing, ripple measurement, component performance optimization and medical equipment testing—serving as a fully functional, high-performance testing device. The High-resolution oscilloscope 8GHz/5GHz 1007004 meets the rigorous demands of professional R&D and manufacturing, providing reliable support for complex signal analysis.
| Specification | Details |
|---|---|
| Number of Channels | 4 |
| Bandwidth | 8GHz/5GHz |
| ADC Resolution | 12bit |
| ERES | 16bit |
| Maximum Sampling Rate | 20GSa/s |
| Maximum Memory Depth | 2Gpts |
| Maximum Waveform Capture Rate | 1,000,000wfms/s |
