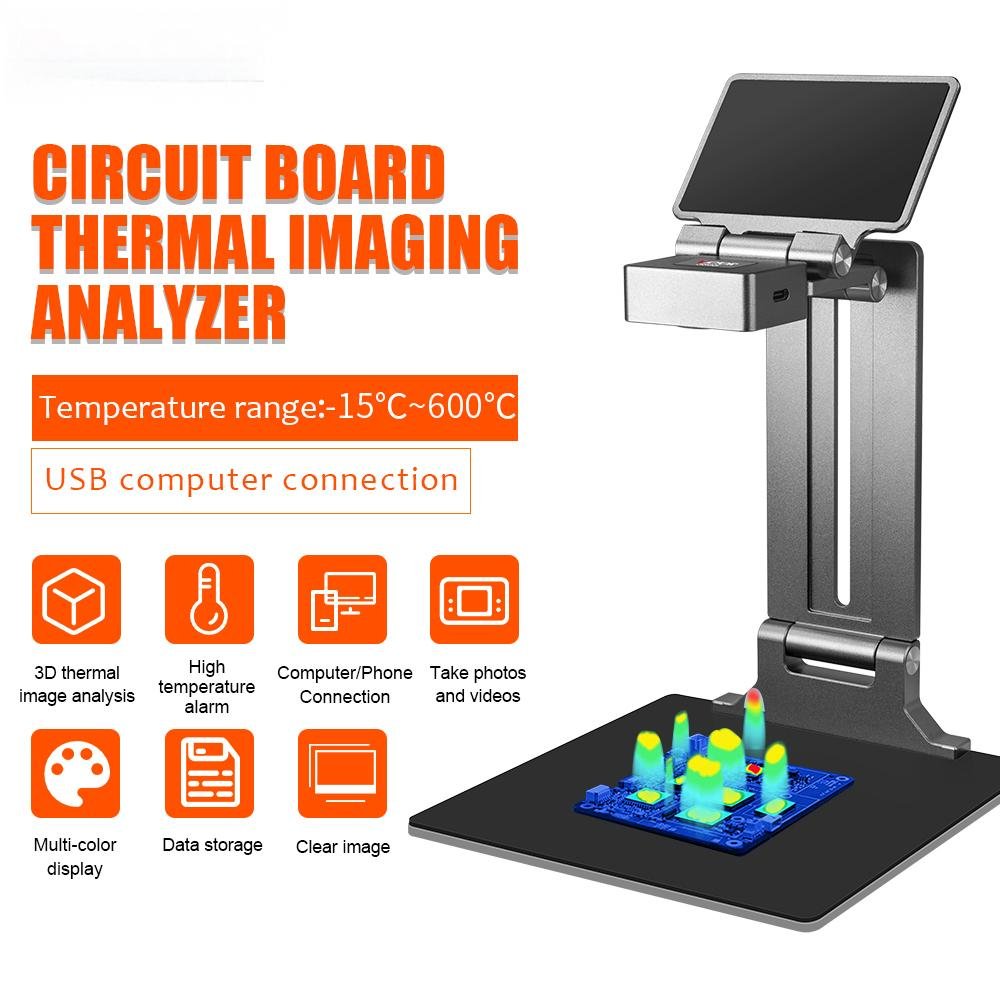

Le Infrared Thermal Imaging Analyzer for PCBA Circuit Boards 1009025 applies infrared thermal imaging technology to PCB repair. It runs on both computers and Android systems, analyzing circuit board issues with dedicated software that collects data online to identify short-circuit points, leaky components, and assess thermal structure design rationality.
This analyzer features an infrared resolution of 256*192 and a refresh rate of 25Hz, with a FOV of 56°×42° and measurement distance of 100mm–150mm. It supports USB Type C interface and DC 5V input voltage, with a measurement range of -15°C ~ 600°C (5°F ~ +1112°F). Weighing 1200g and sized 150mm×150mm×230mm, it operates in 0°C ~ 50°C and stores in -20°C ~ 60°C.
The integrated infrared analysis software enables efficient data collection and analysis, making it a valuable tool for electronics repair and manufacturing. Whether detecting hidden faults or evaluating thermal design, this Infrared Thermal Imaging Analyzer for PCBA Circuit Boards 1009025 delivers precise and reliable results, enhancing efficiency in circuit board troubleshooting and quality assurance.
| Fonctionnalité | Spécification |
|---|---|
| Résolution infrarouge | 256*192 |
| Refresh Rate | 25Hz |
| Champ de vision | 56°×42° |
| Measurement Distance | 100mm – 150mm |
| Interface | USB Type C |
| Tension d'entrée | DC 5V |
| Plage de mesure | -15°C ~ 600°C (5°F ~ +1112°F) |
| Température de stockage | -20°C ~ 60°C |
| Température de fonctionnement | 0°C ~ 50°C |
| Overall Weight | 1200g |
| Product Size | 150mm×150mm×230mm |
