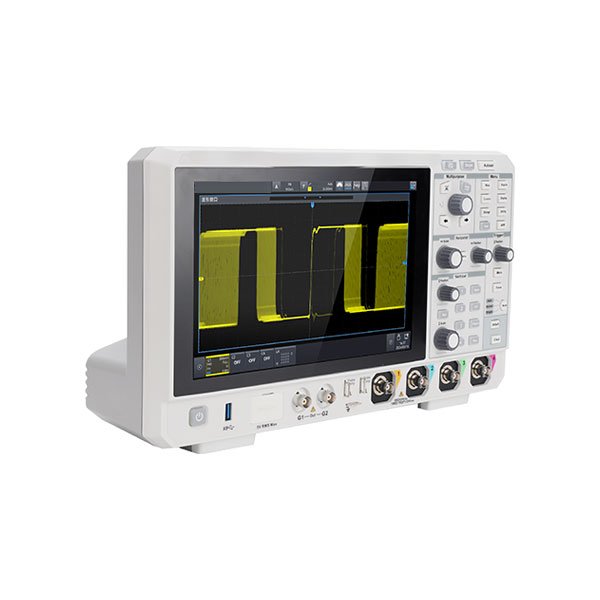

Mixed Signal Oscowithoscope (MSO)
Le Mixed Signal Oscilloscope (MSO) delivers exceptional performance with a maximum sample rate of 5 GSa/s and up to 100 Mpts memory depth per channel. Incorporating exclusive Ultra Phosphor® 3.0 technology, it achieves a waveform capture rate of 2,000,000 wfms/s with 256-level intensity grading and color temperature display. The advanced digital trigger system offers high sensitivity and 10 ps trigger accuracy.
This MSO instrument supports multiple advanced triggers, serial bus triggering and decoding. It enables spectrum analysis, power analysis, histogram, waveform recording, enhanced resolution, pass/fail testing, search and navigation. Comprehensive measurement and math functions are provided. The unit features a 10.1-inch capacitive touchscreen supporting gesture controls and includes WebServer for remote operation.
Nine-in-One Integrated Instrument:
-
Protocol analyzer
-
Bode plot analyzer
-
High-precision frequency counter
-
Digital voltmeter
-
Power analyzer
-
Function/arbitrary waveform generator
-
Spectrum analyzer
-
Logic analyzer
-
Oscilloscope
Ultra Phosphor® 3.0 Caractéristiques:
-
Advanced hardware/software architecture
-
8-channel parallel graphics mapping at 20 Gbps
-
500,000 wfms/s capture rate (2,000,000 wfms/s in sequential mode)
-
<1μs dead time for capturing rare events
Spectrum Analyzer Capabilities:
-
4M-point FFT
-
Waterfall display
-
Automatic marker measurements
-
Four trace displays
-
Four simultaneous FFT windows
Hardware Acceleration:
-
4M-point sampling for improved frequency/amplitude accuracy
-
Peak search and frequency domain marking
-
Complex signal analysis capabilities
56 Measurement Parameters:
-
Automated voltage, frequency, phase, and power measurements
-
Statistical analysis and trend graph visualization
-
Comprehensive signal characterization
Hardware Template Testing:
-
6σ standard compliance (<1 second)
-
3.4 DPMO failure rate
-
Maintains full Ultra Phosphor 3.0 capture rate
Protocol Support:
-
Embedded: RS232/UART, I2C, SPI
-
Automotive: PEUT, CAN-FD, LIN, FlexRay, SENT
-
Audio: I2S, LJ, RJ, TDM
-
<1 second decoding for 200M data
-
Four-bus simultaneous analysis
Power Analysis:
-
PSRR measurements
-
Closed-loop response analysis
-
Power quality assessment
-
Current harmonic detection
-
Inrush current analysis
-
Output ripple analysis
-
Power efficiency analysis
