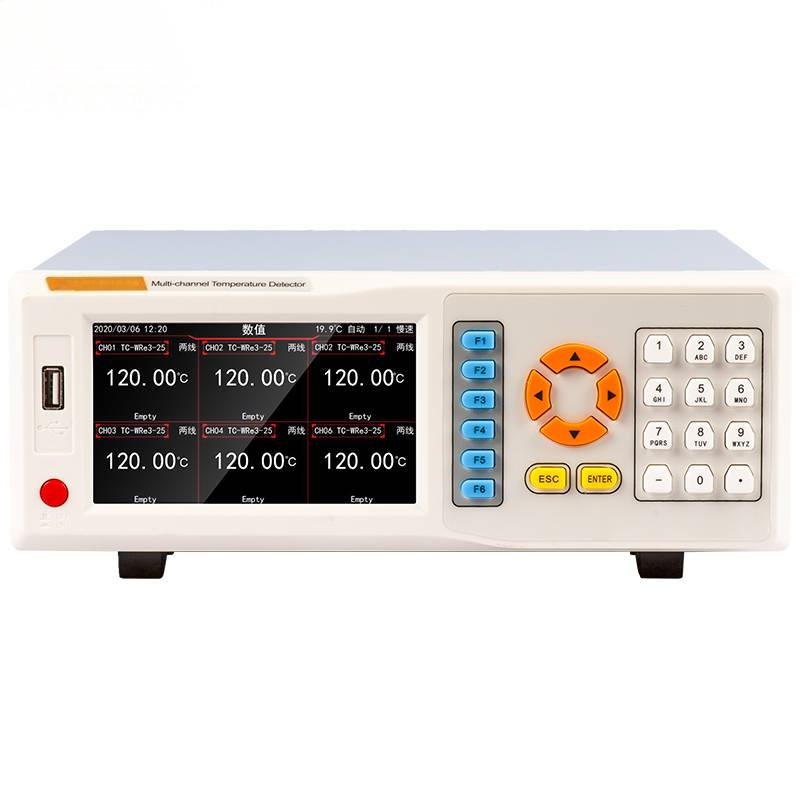

Le Multi-Channel Temperature Data Logger 1009029 is a high-performance device designed for multi-point temperature monitoring and data logging. It supports three data presentation modes: numerical, curve, and bar graph across 6/12/24 multi-interfaces, making data visualization intuitive and versatile. This logger integrates advanced features to meet diverse industrial and research needs, solidifying its position as a reliable tool for temperature management.
It features a 6-digit display with a range of -999.99~9999.99 and a built-in GB2312 Chinese character library with full 拼音 input. Each channel allows independent parameter setting (including upper/lower limit alarms, temperature calibration, display units) and arbitrary naming. When temperature exceeds alarm limits, it triggers audible and visual alarms, with an optional relay alarm output module.
Equipped with a hardware real-time clock (powered by a lithium battery, maximum clock error ±1 minute/year), a high-speed 32-bit ARM microprocessor, and channel isolation (anti-high-frequency interference, isolation voltage peak up to 400V), it supports thermocouples (J, K, T, E, S, N, B, R, WRe3-25, WRe5-26) and thermal resistors (PT1000, PT100, CU100, CU50). It stores historical data via an 8GB FLASH chip, enabling data export via USB. Sampling periods are adjustable: slow (1s/channel), medium (0.5s/channel), fast (0.2s/channel).
With USB-HOST and USB-DEVICE communication interfaces (supporting RS232), and optional 10V, 100V, 20mA current/voltage measurement (VICTOR 8801B series only), it’s widely used in lighting, electric tools, home appliances, motors, pharmaceuticals, oil, chimique, metallurgy, power industries, and research institutions for production, laboratory, and quality supervision scenarios.
| Fonctionnalité | Spécification |
|---|---|
| Data Presentation Modes | Numerical, curve, bar graph (6/12/24 multi-interfaces) |
| Display | 6-chiffre, range: -999.99~9999.99 |
| Character Library & Input | Built-in GB2312 Chinese character library, full Pinyin input |
| Channel Settings | Independent parameter setting (alarm limits, calibration, unités, naming) |
| Alarm | Audible/visual alarm, optional relay output module |
| Real-Time Clock | Hardware clock, lithium battery backup, ±1 min/year error |
| Processor | High-speed 32-bit ARM microprocessor |
| Channel Isolation | Anti-high-frequency interference, isolation voltage peak 400V |
| Thermocouples Supported | J, K, T, E, S, N, B, R, WRe3-25, WRe5-26 |
| Thermal Resistors Supported | PT1000, PT100, CU100, CU50 |
| Data Storage | 8GB FLASH, USB data export |
| Sampling Period | Slow: 1s/channel, Medium: 0.5s/channel, Fast: 0.2s/channel |
| Communication Interfaces | USB-HOST, USB-DEVICE, RS232 |
| Optional Measurement (VICTOR 8801B Series) | 10V, 100V, 20mA current/voltage |
| Applications | Éclairage, electric tools, home appliances, motors, pharmaceuticals, oil, chimique, metallurgy, power, research institutions (production, laboratory, quality supervision) |
