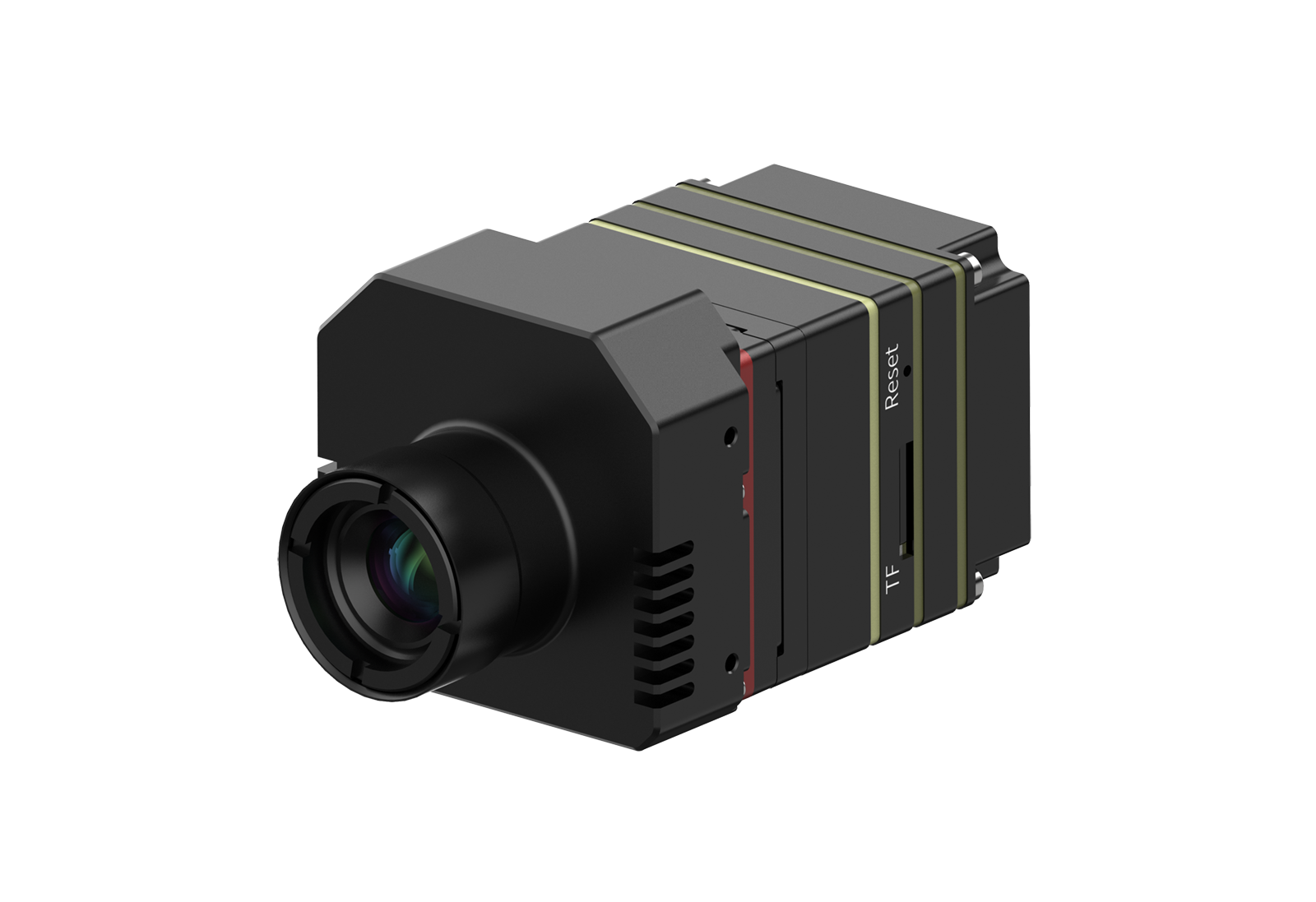

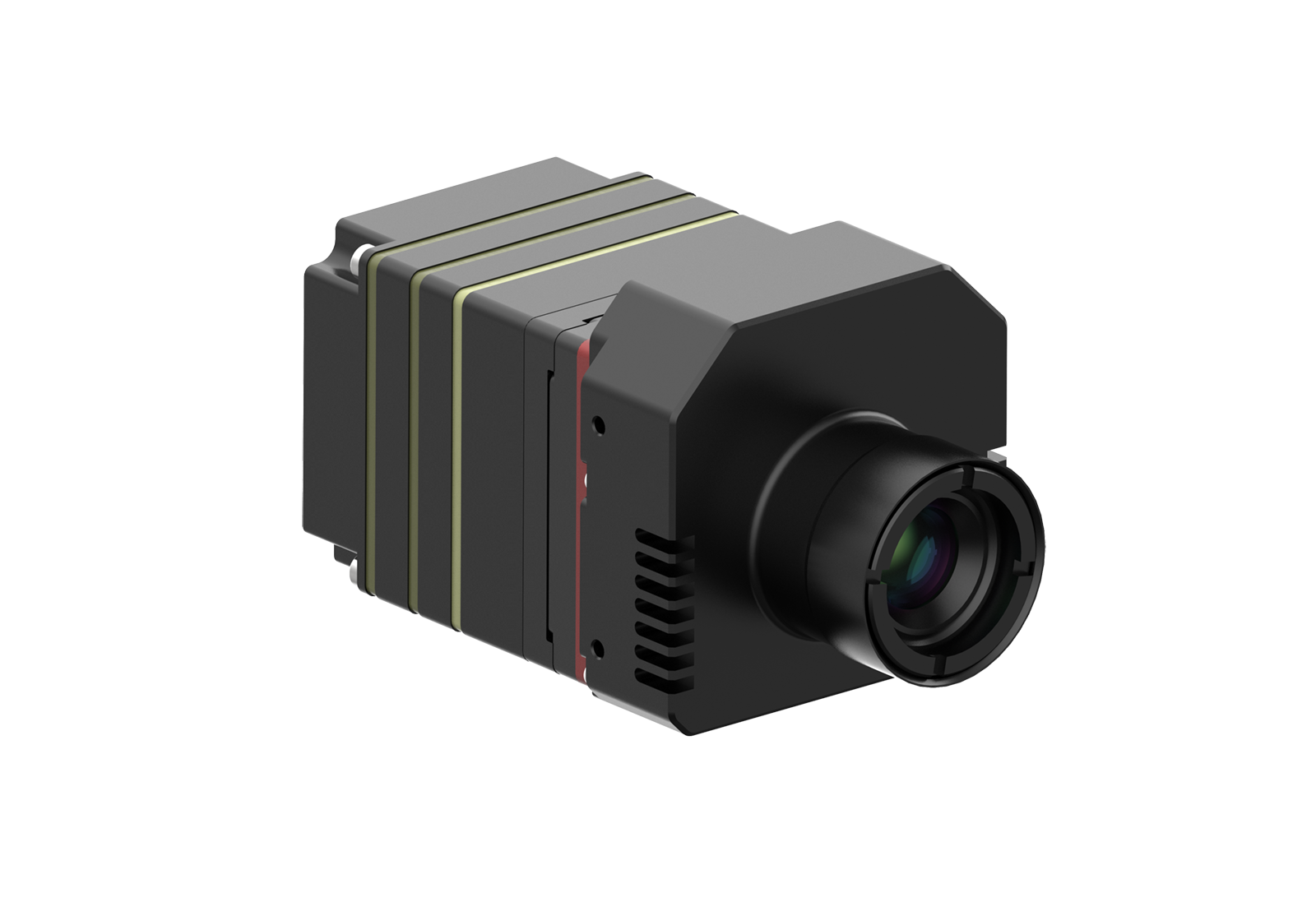

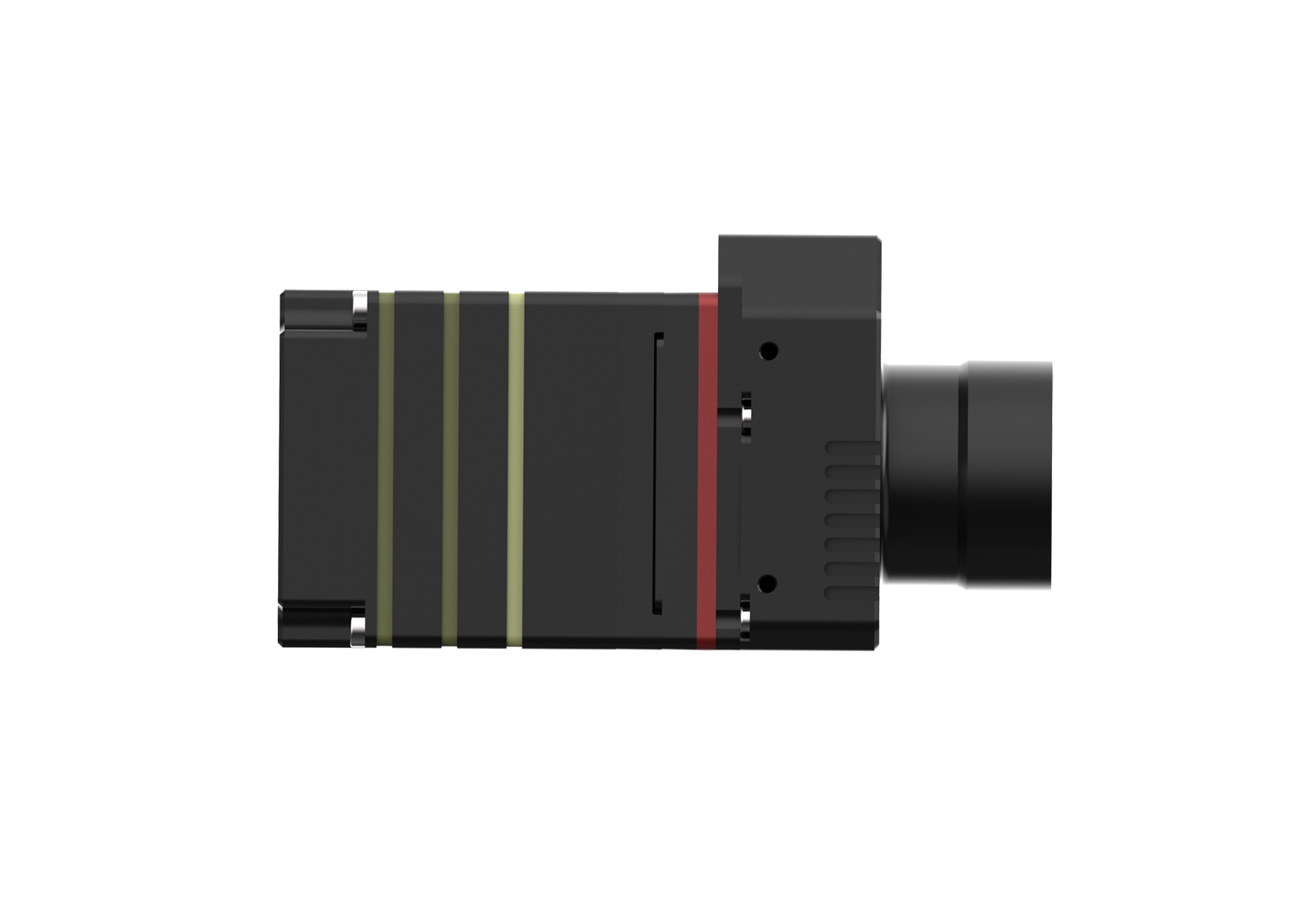

Le Online thermal imaging camera 1019007 is a high-performance, high-precision network-based temperature-measuring thermal imager. It adopts an uncooled infrared focal plane detector, with multiple lens options available, delivering clear and accurate infrared images and temperature measurement functions. The TN430 supports various communication protocols including Modbus TCP, ONVIF and GB28181, and comes with professional infrared temperature measurement analysis software and an SDK. It features a compact size and low power consumption, facilitating system integration in scenarios such as machine vision, pouvoir, rail transit and industrial automation.
It outputs high-quality images—specifically, the TN430 delivers high-resolution 384×288 infrared images, providing clear and detailed thermal maps for temperature data analysis and judgment. This clarity ensures engineers can easily identify temperature anomalies and make informed decisions.
It boasts a high frame rate and real-time data transmission. With a frame rate of up to 50Hz, the TN430 captures temperature changes extremely quickly, making it ideal for scenarios requiring real-time temperature monitoring. It synchronously outputs temperature data, enabling engineers to conduct secondary analysis based on on-site conditions.
It offers a wide temperature measurement range and multiple lens choices. It covers a temperature range of -20℃~+650℃, adapting to industrial scenarios with diverse temperature requirements. It adopts a temperature compensation algorithm that offsets the impact of environmental factors on temperature measurement, ensuring the accuracy and reliability of results. The Online thermal imaging camera 1019007 allie précision, versatility and easy integration, serving as a dependable tool for professional temperature monitoring in industrial and infrastructure fields.
| Spécification | Détails |
|---|---|
| Résolution infrarouge | 384×288 |
| Pixel Pitch | 12µm |
| Bande d'onde de réponse | 7.5μm~14μm |
| Sensibilité thermique (NETD) | ≤40mK |
| Temperature Measurement Function | |
| Plage de mesure de la température | -20℃~+150℃, 0~650℃ |
| Précision de la mesure de la température | ±2℃ or ±2% of reading, celui qui est le plus grand |
| Temperature Measurement Correction | Reflected Temperature, Température ambiante, Atmospheric Transmittance, Object Emissivity, Distance |
| Temperature Measurement Tools | 12-point temperature measurement, 12-line temperature measurement, 12-area temperature measurement, supports isotherm settings |
| Temperature Range Stretching | Supports Temperature Range Stretching |
