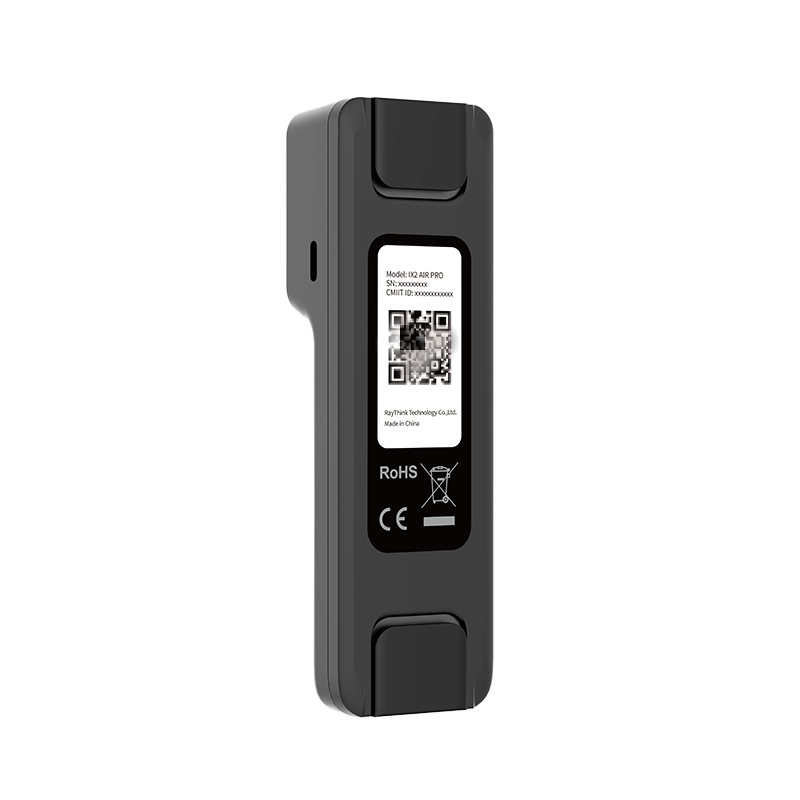

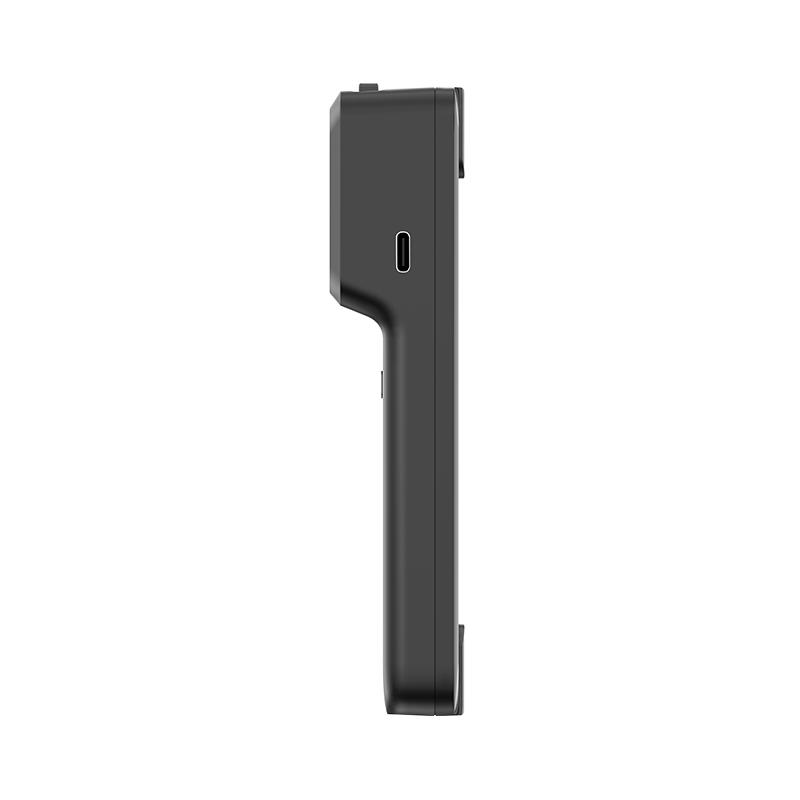

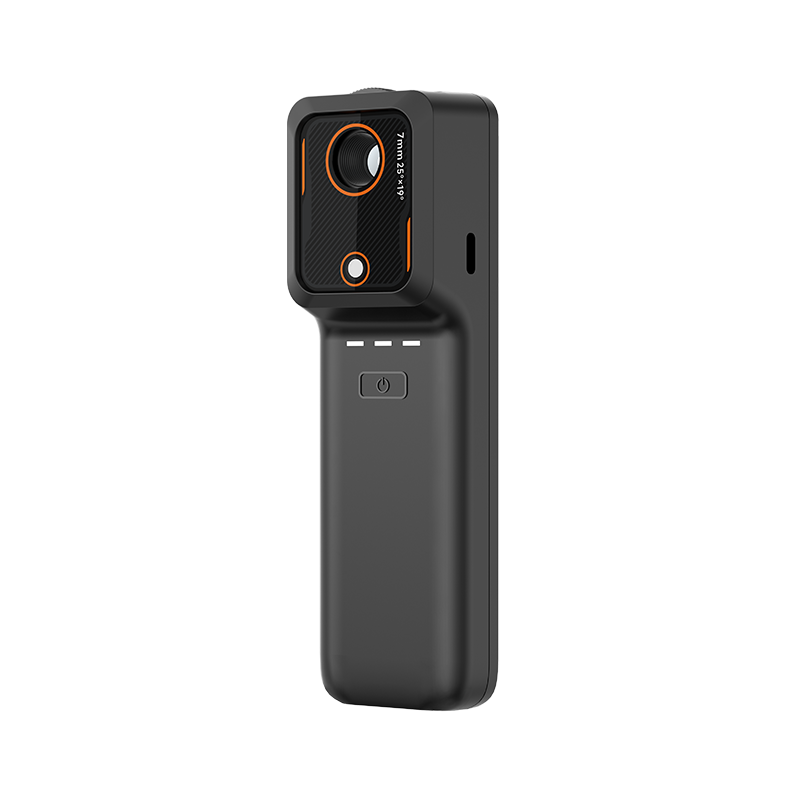

Le Imageur thermique infrarouge sans fil pour téléphone portable 1019003 is compatible with Android and iOS devices, enabling wireless image transmission up to 30 mètres. It features 256×192 thermal imaging resolution, which can achieve 4x real-time AI super-resolution to 512×384. Equipped with a 7mm adjustable-focus lens, it delivers clear images both near and far. The AI Xiaorui voice interaction allows quick parameter settings, suitable for scenarios like circuit board inspection, entretien électrique, equipment patrol and HVAC leak detection.
As a wireless measurement tool, it serves as a smart portable thermal imager. Its 7mm manual focus lens ensures flexibility for different distances, while the 30m wireless transmission with a delay of less than 300ms enables convenient remote operation. The AI voice assistant understands user needs, simplifying operation without manual adjustments.
It produces high-definition thermal images powered by full-performance real-time AI super-resolution. With a NETD as low as 40mK, it displays high-definition thermal images in real time. The 25Hz frame rate captures clear images and videos with low motion blur, and the wide temperature measurement range of -20℃~+550℃ adapts to diverse temperature monitoring needs.
Il est également livré avec un écosystème logiciel complet, including a professional APP and PC-side temperature analysis platform that supports secondary analysis. The Wireless mobile phone infrared thermal imager 1019003 combines wireless convenience, high-definition imaging and intelligent operation, serving as a practical tool for professionals in maintenance, domaines d'inspection et techniques.
| Spécification | Détails |
|---|---|
| Résolution infrarouge | 256×192 |
| Super résolution | 512×384 |
| Taille des pixels | 12µm |
| Bande d'onde de réponse | 7.5-14µm |
| Sensibilité thermique (NETD) | <40mk (25℃, F1.0) |
| Frame Rate | 25Hz |
| Distance focale de l'objectif | 7mm |
| Champ de vision (Champ de vision) | 25°×19° |
| Résolution spatiale (IFOV) | 1.71M |
| Méthode de mise au point | Mise au point manuelle |
| Distance minimale d'imagerie | 0.1m |
| Plage de mesure de la température | -20℃~550℃ |
| Précision de la mesure de la température | ±2℃ or ±2% of reading, celui qui est le plus grand |
