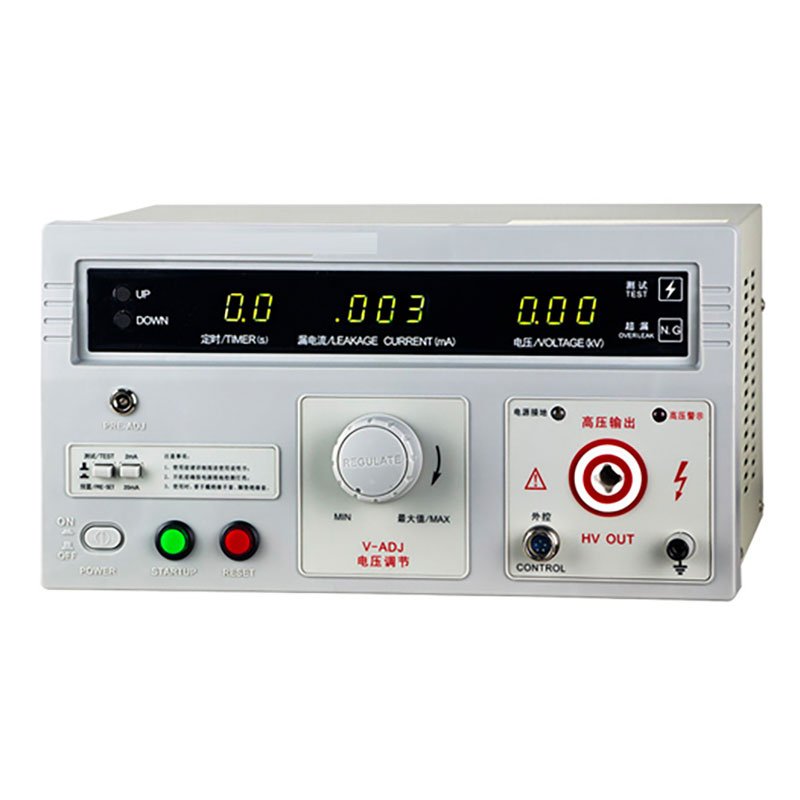

Withstand Voltage Tester 1009017

The Withstand Voltage Tester 1009017 is an AC 5-10KV universal withstand voltage tester designed for high-reliability and durability. It features output voltage adjustable via a voltage regulator and high-strength LED digital tube display, enabling real-time display of test time, voltage, actuel, breakdown current, and voltage values.

This tester allows continuous arbitrary presetting of alarm current values and uses a three-digit digital tube for test time display. It is equipped with signal input and output interfaces required for PLC, facilitating the formation of an integrated test system with PLC (optional). Available in models VICTOR 9300A, 9300B, and 9300C, it offers AC output up to 10KV and DC output up to 10KV (for 9300C), with test current ranges of AC 0-2/20mA and DC 0-2/10mA (varies by model). The test accuracy is ±(5% + 3 digits), and test time ranges from 0.0s to 999s (0.0 for continuous testing). Transformer capacity is 100VA for 9300A/9300B and 200VA for 9300C, with RS232 PLC interface (optional).

Operating on AC 220V±10% 50Hz/60Hz±3Hz, it works in environments with temperature (0-40)°C and humidity ≤75%RH. The dimensions and weights vary by model: 320270180mm/8.5KG for 9300A, 390270180mm/9.5KG for 9300B, and 380305195mm/14.5KG for 9300C. Accessories include high-voltage test lines, ground lines, high-voltage rods, and power cords. It is widely used for voltage testing of electrical equipment, bakelite appliances, transformers, cables, and various electronic products.
