The Programmable linear DC power supply 297W 1007012 features 4 independent channels. CH1/CH2 can provide 32V/3A output and support one-click series-parallel connection with equal performance. CH3 (independent channel) offers 15V/3A output, while CH4 (independent channel) delivers 6V/10A output.

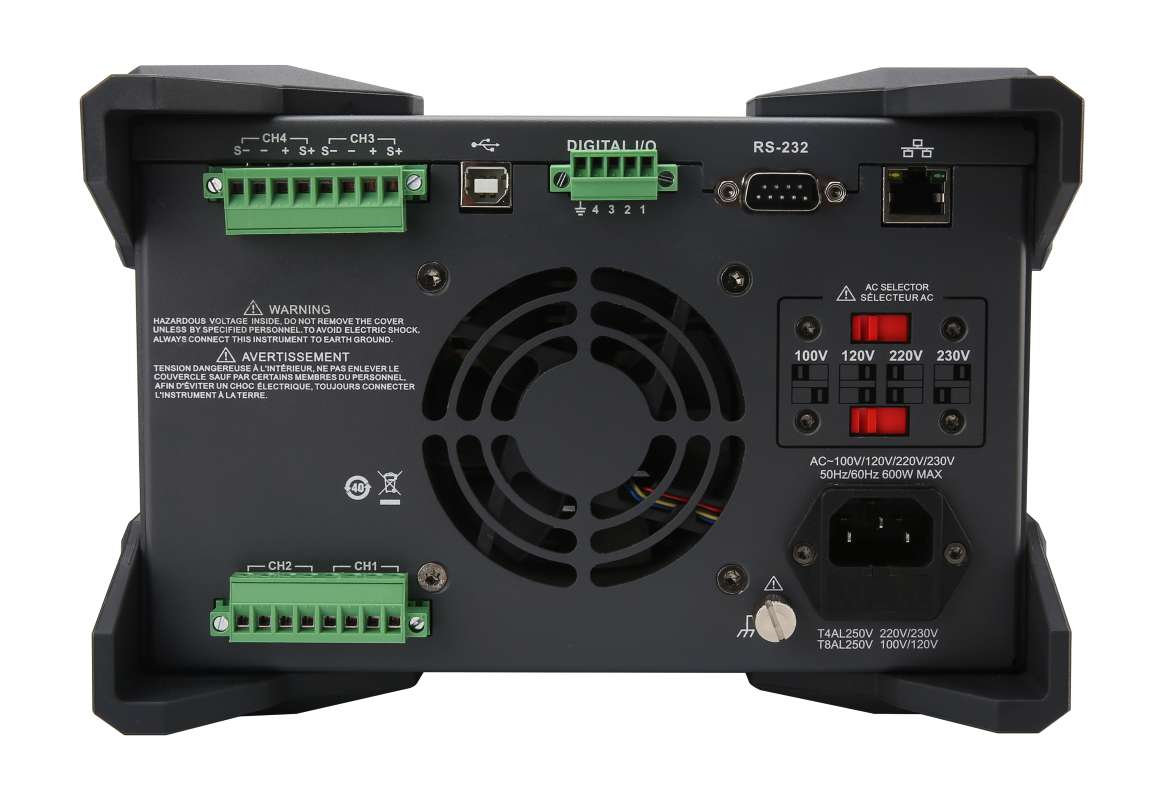

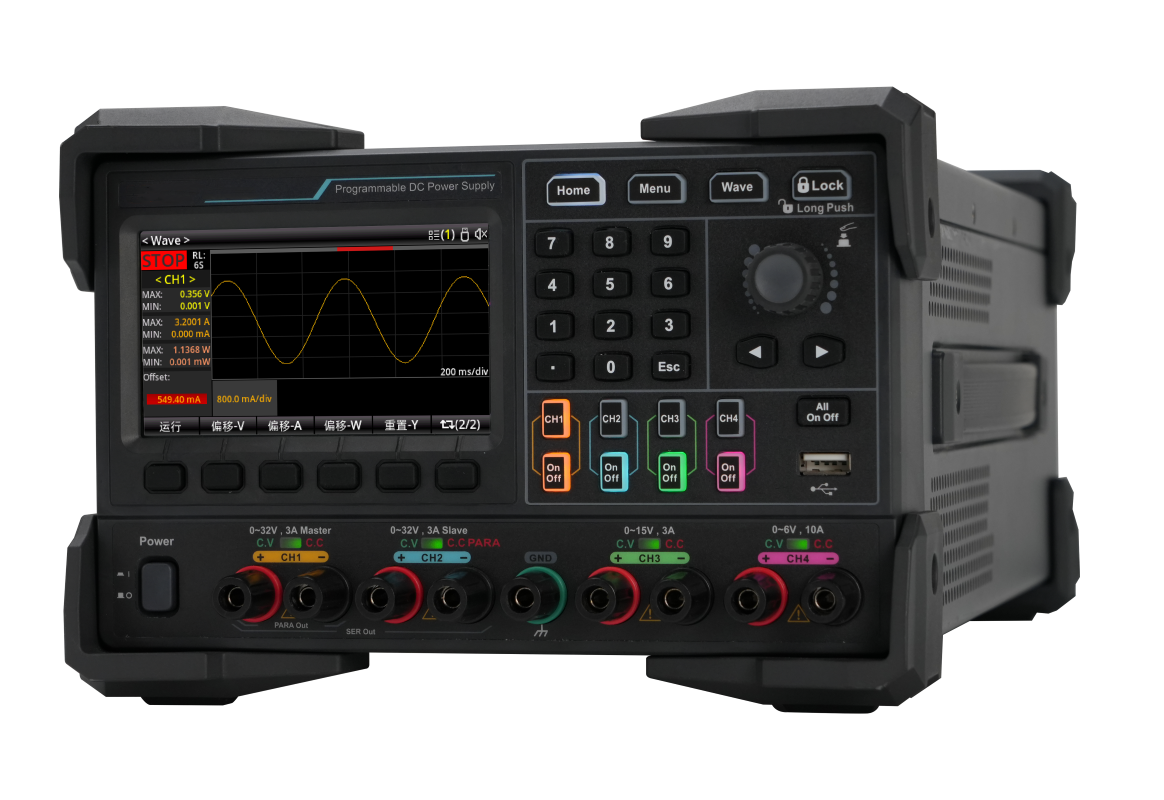

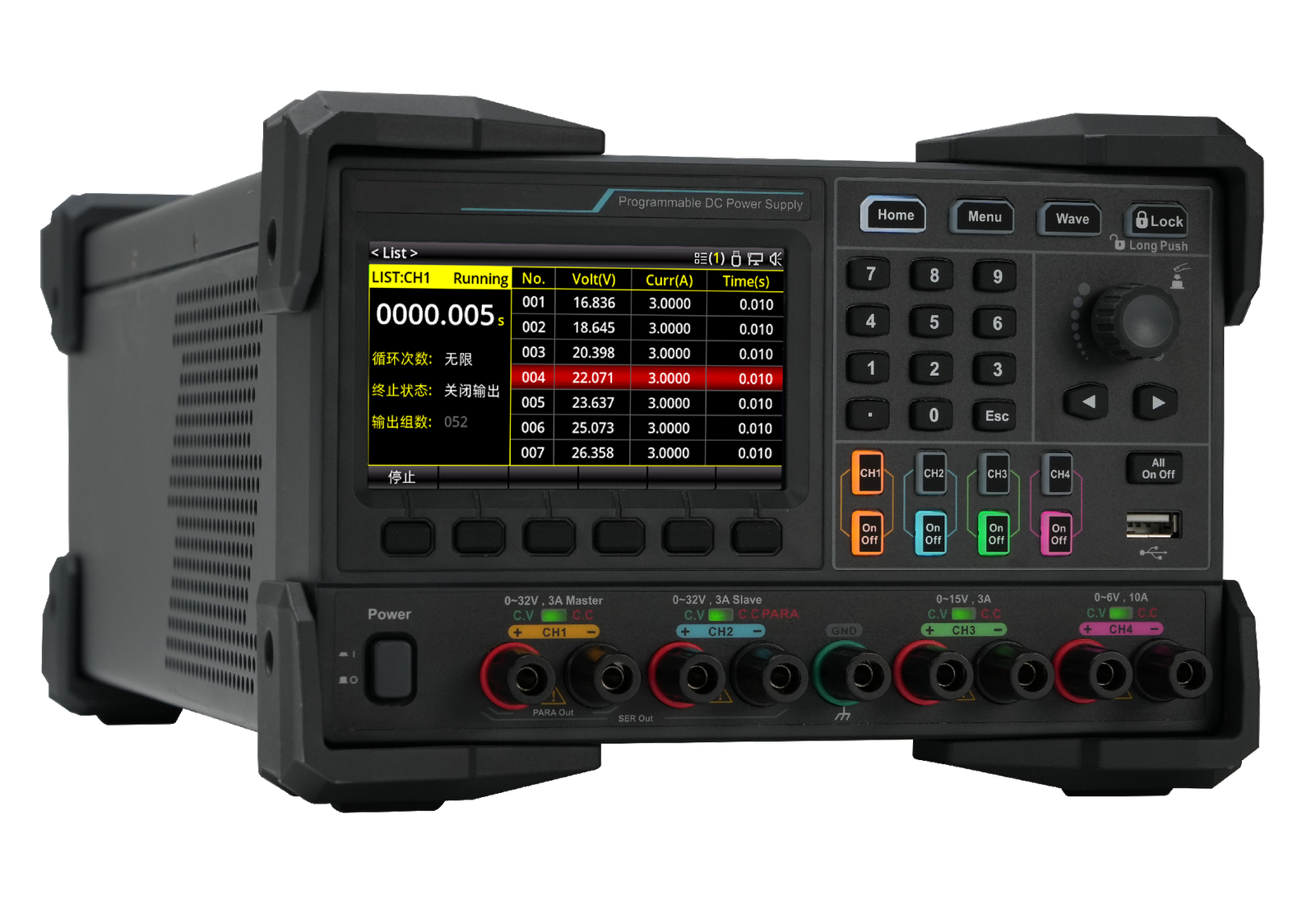

This DC power supply has real-time display functions for 4-channel voltage, current and power waveforms, plus complete power functions like list, monitor, trigger and recorder. The UDP4303S supports USB Device, DIGITAL IO, RS-232 and LAN communication, follows the SCPI standard protocol, and has a command processing time of less than 10ms.
In addition, the UDP4303S has stable and reliable performance and a user-friendly operation interface, making it easy to operate. It applies to fields such as semiconductors, sensors, IoT and smart wearables. The Programmable linear DC power supply 297W 1007012 combines multi-channel flexibility, rich functions and efficient communication, providing reliable power support for diverse electronic testing and R&D tasks.
| Specification | Details |
|---|---|
| Number of Channels | 4 |
| Maximum Output Power | 297W |
| Maximum Output Voltage | 32V |
| Resolution | 1mV/1μA |
