The Set function generator 200MHz 1007011 is a multi-functional mixed signal generator that integrates 6 key functions: function generator, arbitrary waveform generator, pulse generator, हार्मोनिक जनरेटर, analog/digital modulator, and frequency counter. It features 1μHz frequency resolution and 1mV amplitude resolution, generating precise, stable, pure, low-distortion output signals. It also delivers high-frequency pulse waves with 1ns resolution for rising and falling edges via digital synthesis.
It adopts an independent dual-channel design with equal performance, boasting a maximum real-time sampling rate of 500MS/s and a maximum arbitrary waveform length of 32Mpts. It also has 7GB non-volatile waveform storage for convenient data retention. As China’s first model to offer an optional digital signal generator output module, it expands application scenarios for diverse testing needs.

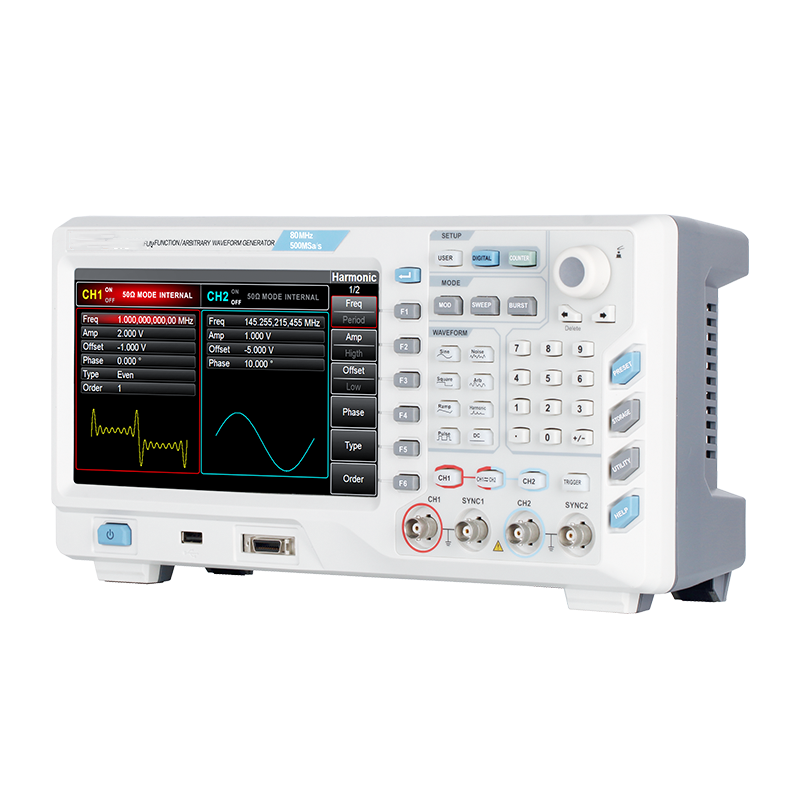

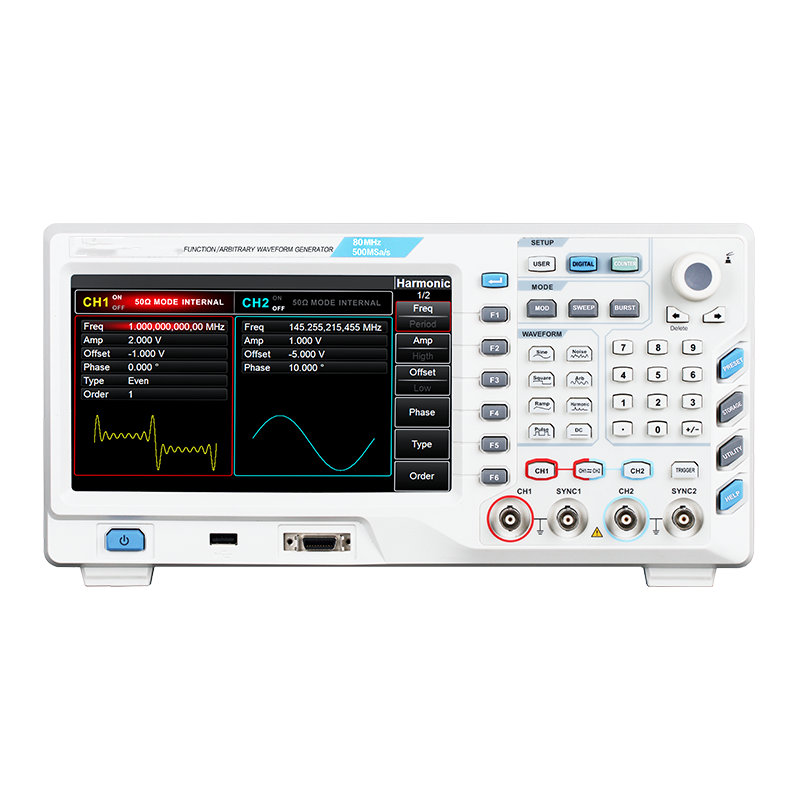

Equipped with an extra-wide 8-inch LCD HD screen, it has a user-friendly interface design and rational function keyboard layout—bringing a more humanized user experience. Whether for electronics R&डी, component testing or system calibration, the Set function generator 200MHz 1007011 balances versatility and precision, serving as a reliable tool for industries like telecom, semiconductor and manufacturing.
| विनिर्देश | विवरण |
|---|---|
| Maximum Output Frequency | 200MHz |
| Maximum Sampling Rate | 500MSa/s |
| Vertical Resolution | 16bit |
| चैनलों की संख्या | 2 |
| Maximum Arbitrary Waveform Length | 32Mpts |
| Hardware Frequency Counter | 7-bit |
| Screen Touch Control | – |
