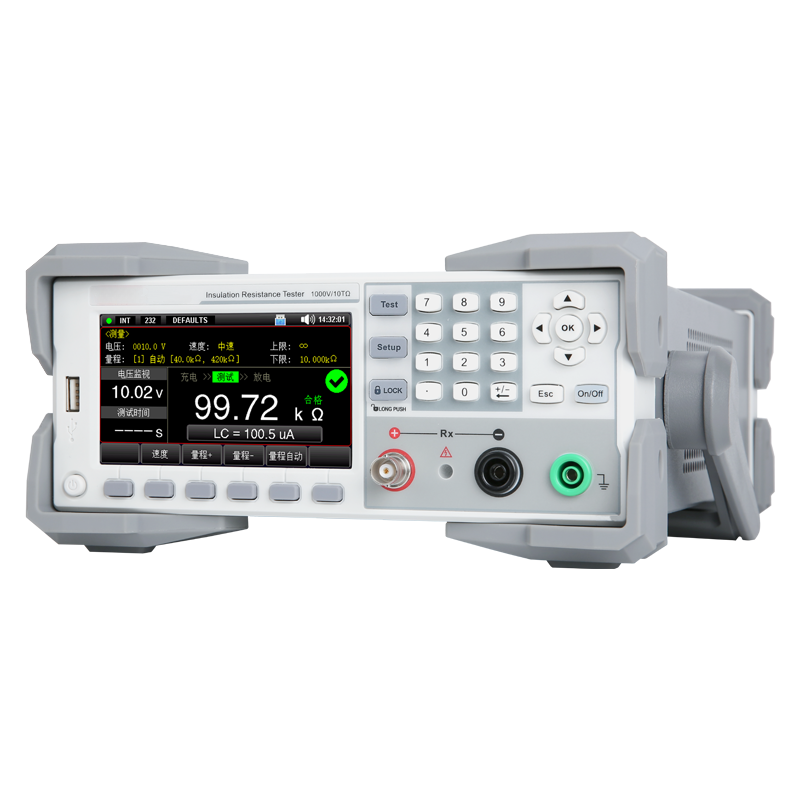

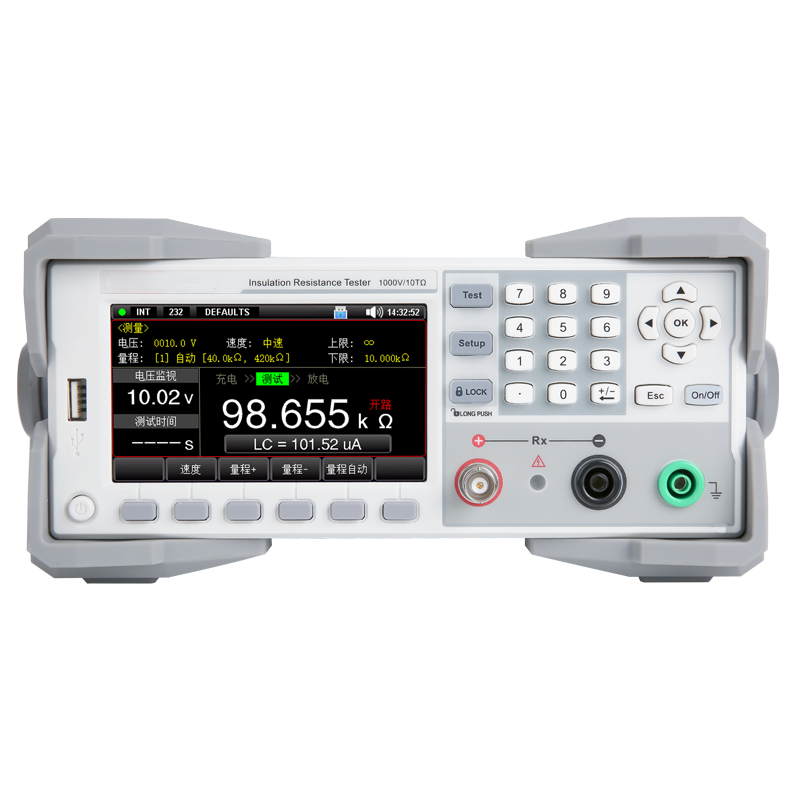

の 4.3型絶縁抵抗計” TFT液晶 1007023 is controlled by a high-performance processor and features a 4.3-inch TFT-LCD display. Its output voltage can be set freely from 1V to 1000V, meeting most testing requirements.
It supports six-range testing, with an insulation resistance measurement range of up to 10kΩ~10TΩ and a sampling rate of up to 30ms per time. These performance indicators ensure it can handle both routine and high-precision insulation resistance tests, delivering fast and accurate data for users.

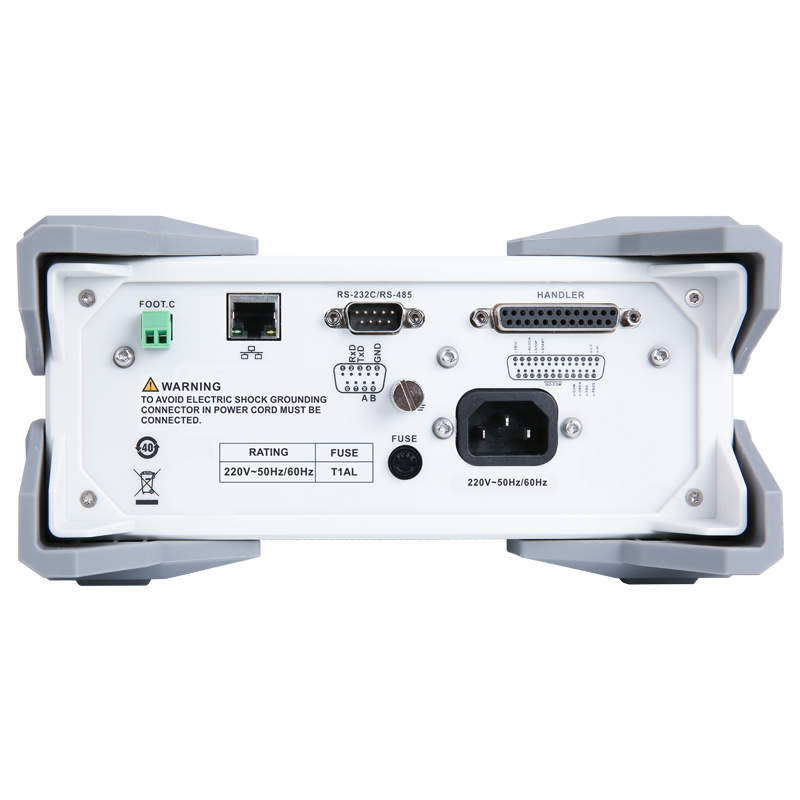

It also comes with rich communication interfaces, providing an optimal testing solution for automated production lines. The interfaces enable seamless integration with automated systems, supporting remote control and data transmission to improve testing efficiency.
Whether used for batch testing in manufacturing or precision verification in labs, it balances versatility and reliability. The Insulation resistance tester with 4.3” TFT液晶 1007023 combines user-friendly display, flexible voltage settings and efficient communication, serving as a dependable tool for insulation resistance testing in electronics, electrical and industrial fields.
| 仕様 | 詳細 |
|---|---|
| 画面 | 4.3″ TFT液晶 |
| 出力電圧 | 1V~1000V (DC) |
| 電圧精度 | 1% |
| 測定範囲 | 10kΩ~10TΩ |
| Measurement Accuracy | 1% |
| 測定速度 | 30ミリ秒/時間 |
