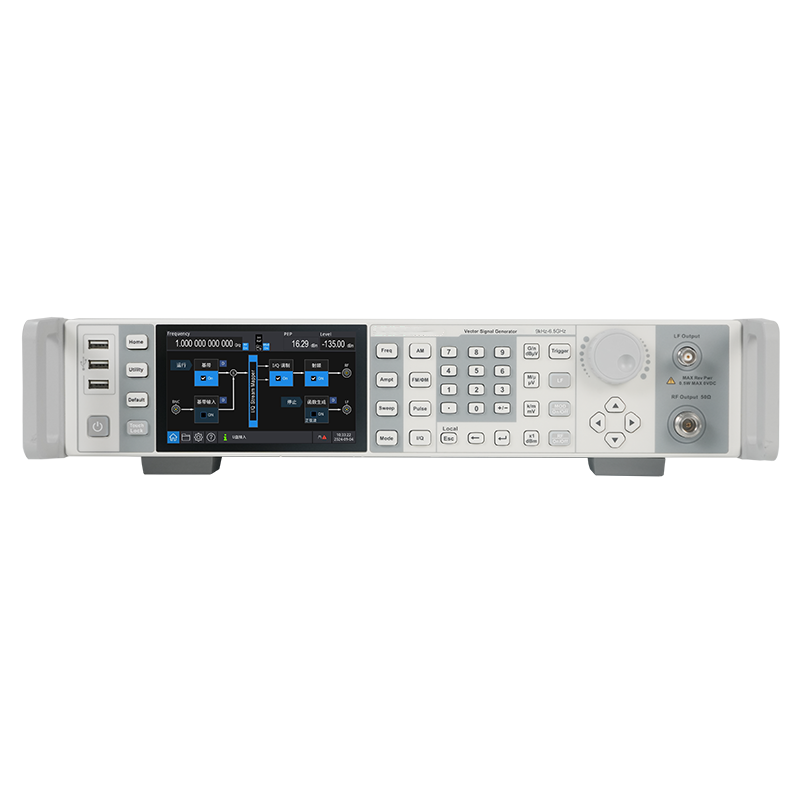

The RF vector signal generator 9kHz~6.5GHz 1007003 adopts a 2U standard height, combining compact design with powerful performance for professional testing. It covers a 9kHz~6.5GHz RF output frequency range, reaches up to +25dBm output amplitude, and supports analog modulation (AM, FM, ΦM) and pulse width modulation at limited rates.
Its pulse modulator provides single, dual and burst pulse modes, with a minimum pulse width of 40ns and a 70dB off ratio. Vector signal modulation extends to 6GHz, supporting internal baseband signal generation and external analog baseband input with a maximum 150MHz modulation bandwidth. The internal baseband generator offers real-time modulation, local ARB and remote ARB modes.
Paired with SignalStudio software, it creates complex modulated signals such as WLAN, WCDMA, LTE and 5G/NR. A built-in 110dB dynamic high-precision programmable attenuator enables output down to -135dBm, making it ideal for testing microwave components like filters, amplifiers and receivers.
This generator integrates versatile functions, precise control and wide compatibility to meet diverse testing needs. It delivers reliable signals for electronics R&d, manufacturing and component validation. The RF vector signal generator 9kHz~6.5GHz 1007003 stands as a dependable tool for engineers seeking efficient, high-performance solutions for module and device testing.
| Specification | Details |
|---|---|
| Screen | 5″ Capacitive Touch |
| Frequency Range | CW:9kHz~6.5GHz IQ:9kHz~6GHz |
| Frequency Resolution | 0.001Hz |
| Phase Noise (1GHz@20kHz) | <-122dBc/Hz |
| Output Power | -135dBm~+25dBm |
| Mechanical Attenuator | ✔ |
