ឌីជីថលអូសស៊ីលីកូស

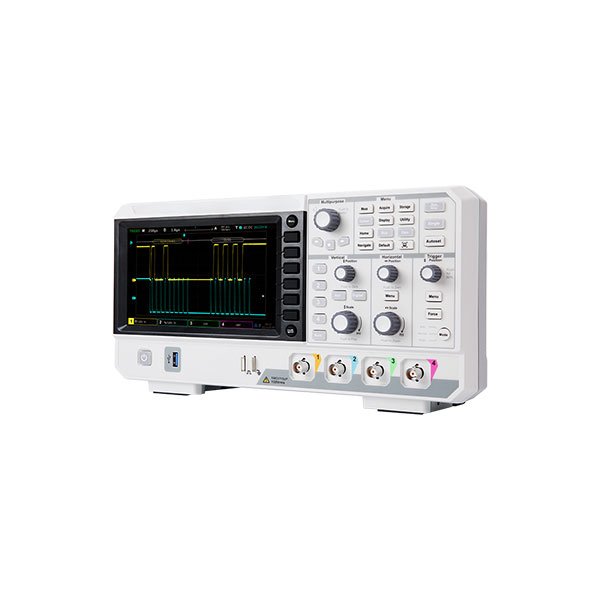

នេះ ឌីជីថលអូសស៊ីលីកូស incorporates UNI-T’s innovative digital 3D technology with a completely upgraded appearance, delivering deep memory, high waveform capture rate, real-time waveform recording and playback, and 256-level grayscale display. This series offers two bandwidth levels of 100MHz/200MHz, with a real-time sampling rate up to 2 GSa/s. All models feature 4/2 channels and standard maximum memory depth of 56 Mpts. In Fast Acquire mode, the capture rate reaches 500,000 wfms / s. The hardware enables continuous real-time waveform recording and analysis of up to 120,000 waveform frames. It supports an independent DVM module, comprehensive triggering and bus decoding capabilities, and full-memory hardware real-time decoding. This digital oscilloscope is widely used in communications, semiconductors, computers, integrated circuit design, instrumentation, industrial electronics, consumer electronics, គ្រឿងអេឡិចត្រូនិចរថយន្ត, field maintenance, R&ឃ, and education.
Maximum Waveform Capture Rate: 500,000 wfms / s
-
Innovative digital signal parallel processing technology
-
Normal sampling achieves 150,000 wfms/s ultra-high capture rate
-
Fast Acquire mode reaches 500,000 wfms / s
New Functions:
-
Added prompts and labels
-
New single-frame DSO mode
-
New minimum 500μV/div
-
New brightness adjustment方案
Web Control:
-
Cross-platform access
-
WAN and LAN viewing and control
-
Online help page
1M-point Enhanced FFT:
-
New independent spectrum view
-
4 traces, 4 detection modes
-
Automatic trace peak measurement
-
Multiple window displays
3 Protocols:
-
RS232/UART, I2C, SPI
-
Full-memory hardware decoding with 56 Mpts deep memory
-
Real-time decoding <300 ms, significantly improving diagnostic efficiency
Automatic Parameter Measurement:
-
Parameter snapshot reduces waveform obstruction
-
New measurement area selection
-
New quick parameter clear
-
New measurement thresholds
Cursor Measurement:
-
New multi-channel simultaneous measurement
-
On-screen measurement
One-key Home Menu:
-
Waveform recording
-
Pass/fail testing
-
Help
-
7-digit frequency counter
-
Digital multimeter
4-digit RMS Display:
-
Supports DC/AC and DC+AC RMS
-
Threshold alarm
-
Easy value setting
-
Dedicated keyboard call-out key
-
Direct keyboard setting
-
Arbitrary step setting
Flat Interactive Interface:
-
Flat interactive pop-ups
-
Single-page first-level menu
-
More function keys
-
Multi-function page jump key
