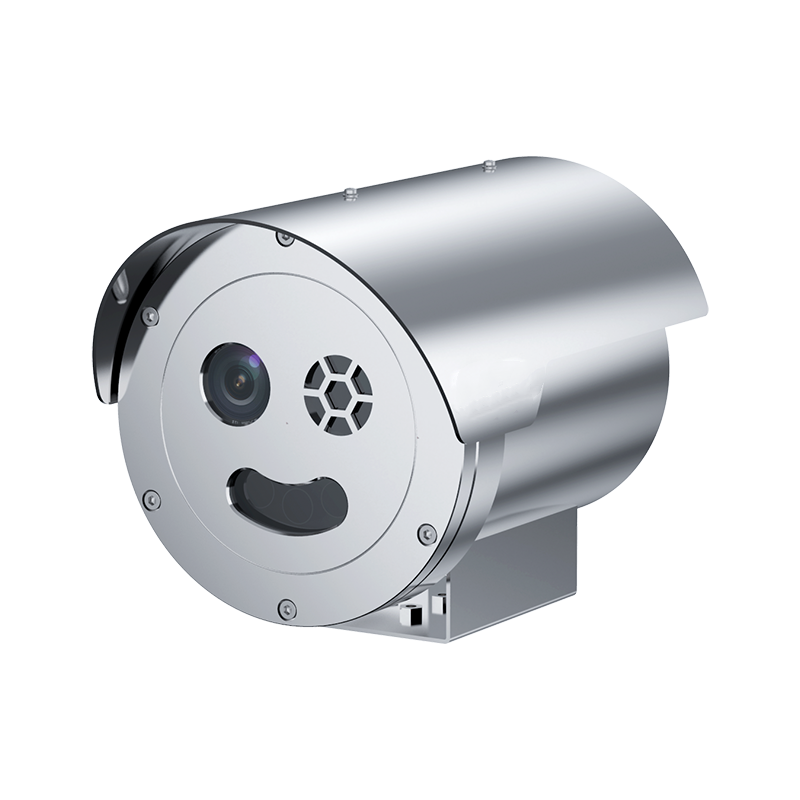

នេះ Dual-spectrum explosion-proof tube camera 1019009 features a built-in high-definition visible light camera and an advanced infrared thermal imaging detector, with 640×512 pixel thermal imaging resolution. It holds dual explosion-proof certifications for gas and dust, enabling operation in Gas Zones 1/2 and Dust Zones 21/22 to support enterprises’ safe production.
It adopts the latest generation 12μm uncooled infrared detector, integrated with leading infrared image algorithms to deliver clearer imaging at longer distances. The dual-spectrum imaging (visible light & thermal imaging) meets the needs of 24/7 all-weather security monitoring, ensuring reliable detection day and night.
Its dual explosion-proof certifications (Ex db Ⅱc T6 Gb, Ex tb Ⅱc T80℃ D) provide comprehensive protection in hazardous environments. It enables precise temperature measurement, supporting global, point, line and area temperature testing with a range of -20℃~+550℃ and an accuracy of ±2℃.
It comes with built-in intelligent fire and smoke detection algorithms, delivering efficient and accurate identification while linking with audio-visual alarms. It also supports intelligent video analysis functions such as dual-spectrum regional intrusion detection and tripwire intrusion detection. The Dual-spectrum explosion-proof tube camera 1019009 combines explosion-proof safety, high-definition imaging and intelligent analysis, serving as an indispensable tool for safe monitoring in hazardous industrial scenarios.
| ការបញ្ជាក់ | ព័ត៌មានលំអិត |
|---|---|
| Response Waveband | 8~14μm |
| NETD | ≤40mK(@25℃,F#1.0,25Hz) |
| Sensor Resolution | 640×512 |
| Pixel Size | 12μm |
| Focal Length | 9.1mm/13mm |
| Sensor | 5MP 1/2.8″ Progressive Scan CMOS |
| Resolution | 2560×1920 |
| Focal Length | 4mm/6mm |
| Infrared Fill Light | 50m |
