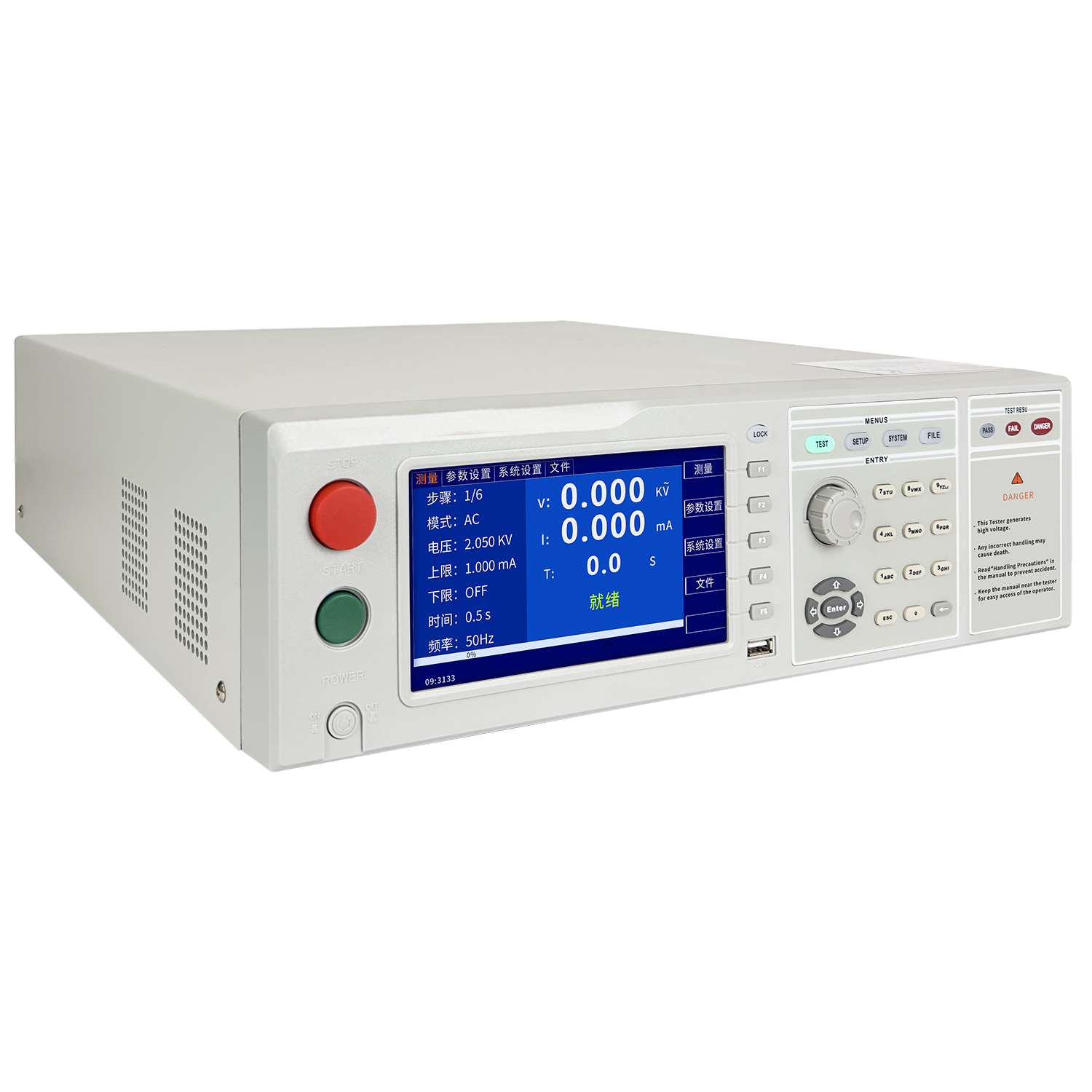

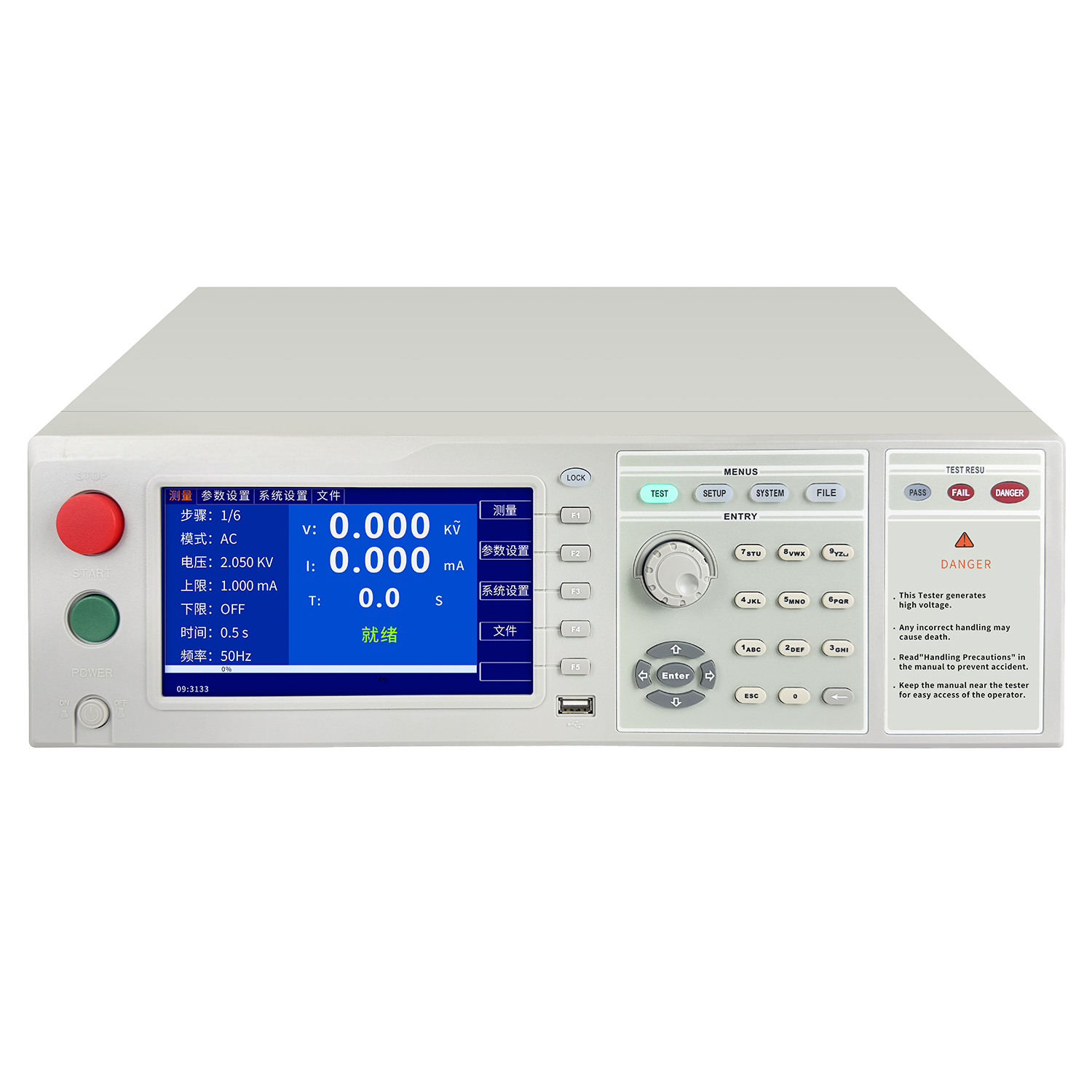

នេះ កម្មវិធីសាកល្បងអនុលោមភាពសុវត្ថិភាពកម្មវិធីប្រាំក្នុងមួយ 1009018 (Model VICTOR 9350) integrates AC withstand, DC withstand, insulation resistance, grounding resistance, and leakage current testing. It adopts DDS digital synthesis technology to generate precise, ស្ថិរភាព, pure, and low-distortion sine waves, ensuring high testing accuracy.
This tester features adjustable voltage rise and fall times to meet diverse test object requirements, and supports dual-frequency comprehensive testing (50ហឺត, 60ហឺត). It offers a bilingual (Chinese/English) operation interface, catering to different user needs. With a memory capacity to store 140 test files (each with up to 20 test steps), it comes standard with PLC, RS232C, RS485, and USB interfaces. A 7-inch TFT (800*480) display clearly presents setup and test parameters.
In terms of specifications, AC withstand test covers 0.050kV~5.000kV (±(1%+0.2% full scale), 1V resolution), DC withstand test ranges 0.050kV~6.000kV, insulation test supports 0.050kV~5.000kV (0.2M~10GΩ range), grounding resistance test has a voltage range of 3.0-32.0A, and leakage current test (with optional isolation transformer) spans 30.0V~300.0V. It also includes an MD simulated human body network with 8 standard networks.
Suitable for components, household appliances, insulation materials, electric tools, and new energy vehicles, this tester is ideal for high-voltage testing and automated test systems. Its 卧式 (horizontal) ការរចនា, arc detection (1mA-20mA), and multiple communication interfaces make it a versatile tool for electronics and electrical industries.
| AC Withstand Test | ជួរវ៉ុល | 0.050kV ~ 5.000kV | |
| ភាពត្រឹមត្រូវនៃវ៉ុល | ±(1% + 0.2% full scale) | ||
| ដំណោះស្រាយ | 1វ | ||
| Max Output Power | 100VA (5.000kV / 20mA) | ||
| Max Rated Current | 20mA | ||
| Lower Current Range | 0 ~ 50mA, 0 = no lower limit judgment | ||
| Output Waveform | Sine Wave | ||
| Output Waveform Distortion | ≤5% (no-load or pure resistive load) | ||
| Output Signal Type | DDS Linear Power Amplifier | ||
| DC Withstand Test | ជួរវ៉ុល | 0.050kV ~ 6.000kV | |
| ភាពត្រឹមត្រូវនៃវ៉ុល | ±(1% + 0.2% full scale) | ||
| ដំណោះស្រាយ | 1វ | ||
| Max Output Power | 60វ (6000kV / 10mA) | ||
| Max Rated Current | 0 ~ 10mA | ||
| Insulation Test | Output Voltage Setting | 0.050kV ~ 5.000kV, ដំណោះស្រាយ: 1V/step | |
| Resistance Upper Limit Setting | (0.2M ~ 10G)អូ | ||
| Resistance Lower Limit Setting | (0.1M ~ 10G)អូ | ||
| Voltage Rise Time | 0.1S ~ 999.9S, OFF = voltage rise time off | ||
| Test Time | 0.3S ~ 999.9S, OFF = continuous test | ||
| Voltage Fall Time | 0.1S ~ 999.9S, OFF = voltage fall time off | ||
| Grounding Resistance | អូមម៉ែត្រ | ≥500V: 0.1MΩ-1.0GΩ ±5%; 1.0G-50.0GΩ ±10%; 50.0GΩ-100.0GΩ ±15% <500វ: 0.20MΩ-1.0GΩ ±10%; 1.0GΩ-10.0GΩ |
|
| ជួរវ៉ុល | (3.0-32.0)ក | ||
| Current Accuracy | ±(1% reading + 0.2ក) | ||
| ដំណោះស្រាយ | 0.1ក | ||
| Resistance Upper Limit Setting | Up to 600m | ||
| Resistance Lower Limit Setting | 0 ~ resistance upper limit | ||
| Output Waveform | Sine Wave | ||
| Output Waveform Distortion | ≤3% (no-load or pure resistive load) | ||
| Output Signal Type | Linear Power Amplifier Drive Output | ||
| Current Rise Time | 0.1S ~ 999.9S, OFF = voltage rise time off | ||
| ចរន្តលេចធ្លាយ (Optional Isolation Transformer) | ជួរវ៉ុល | 30.0V ~ 300.0V | |
| ភាពត្រឹមត្រូវនៃវ៉ុល | ±1% reading + 2វ | ||
| ដំណោះស្រាយ | 0.1វ | ||
| Max Output Power | 500VA (220វ), 300VA (110វ) | ||
| Current Upper Limit Setting | 0.1uA ~ 20.0mA | ||
| Current Lower Limit Setting | 0.0uA ~ current upper limit | ||
| MD Simulated Human Body Network | 8 Standard Networks: MD-A(GB/T12113-2003, GB4793.1-2007), MD-B/B1 (GB/T12113-2003, GB4793.1-2007, GB4706.-2005, GB4943.1-2011, GB8898-2011), MD-C (GB/T12113-2003, GB7000.-2015), MD-D(GB4793.1-2007), MD-E(GB9706.1-2007), MD-F (GB7000.-2015), MD-G (GB4943.1-2011, GB4793.1-2007) | ||
| Model Type | Horizontal | ||
| Isolation Transformer | Optional Accessory | ||
| Arc Detection | 1mA-20mA | ||
| Output Frequency | AC 50Hz, 60ហឺត, GR 5Hz/60Hz | ||
| Input Characteristics | 230V ±10% 50Hz/60Hz | ||
| Test Alarm | Buzzer, LCD Display, FAIL Indicator | ||
| Screen Size | 7-inch TFT LCD | ||

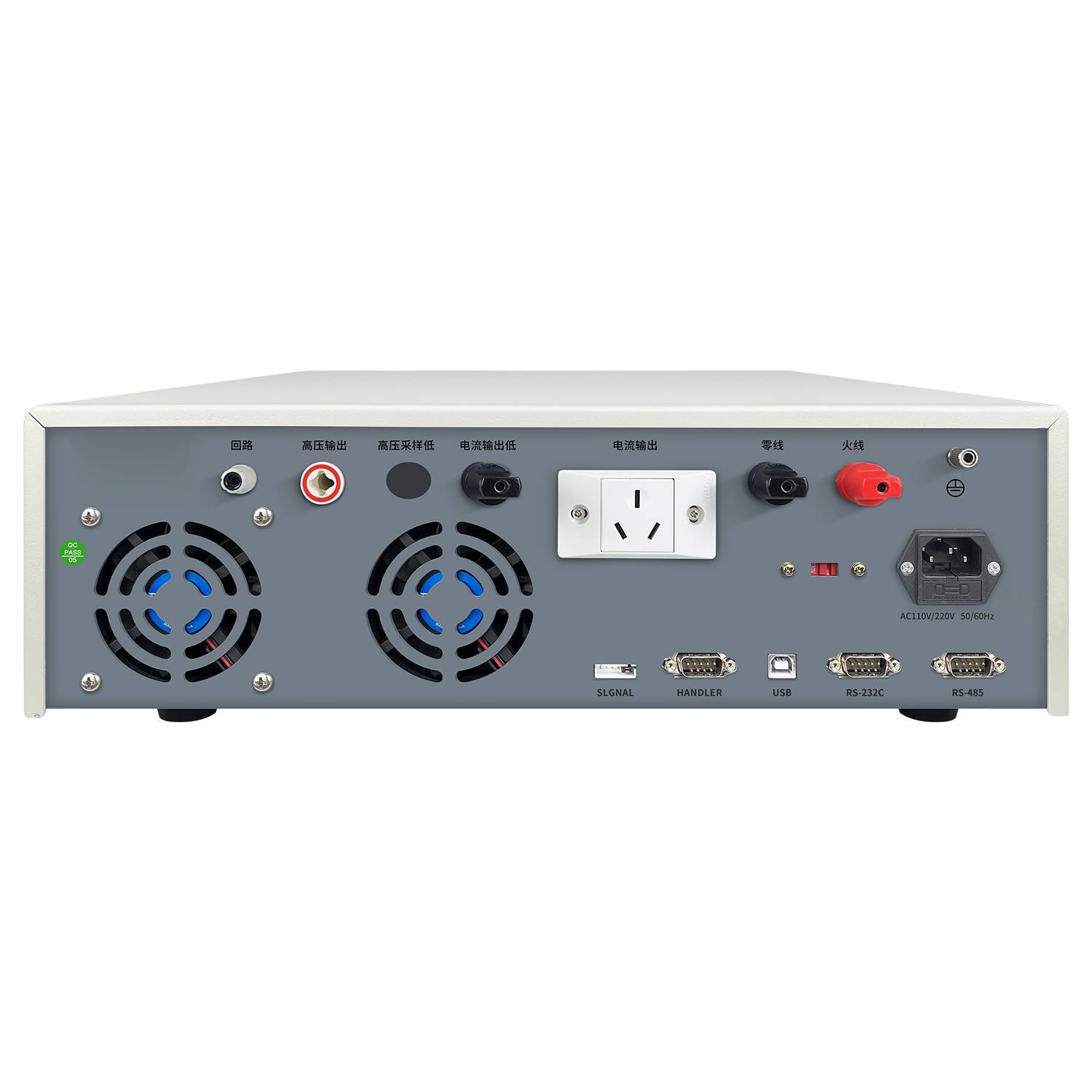

| Communication Interfaces | HANDLER, RS232, RS485, USBDRV (Computer Interface), USBHOST (USB Disk Interface) | ||
| Memory | 16M flash, each file can store 50 test steps | ||
