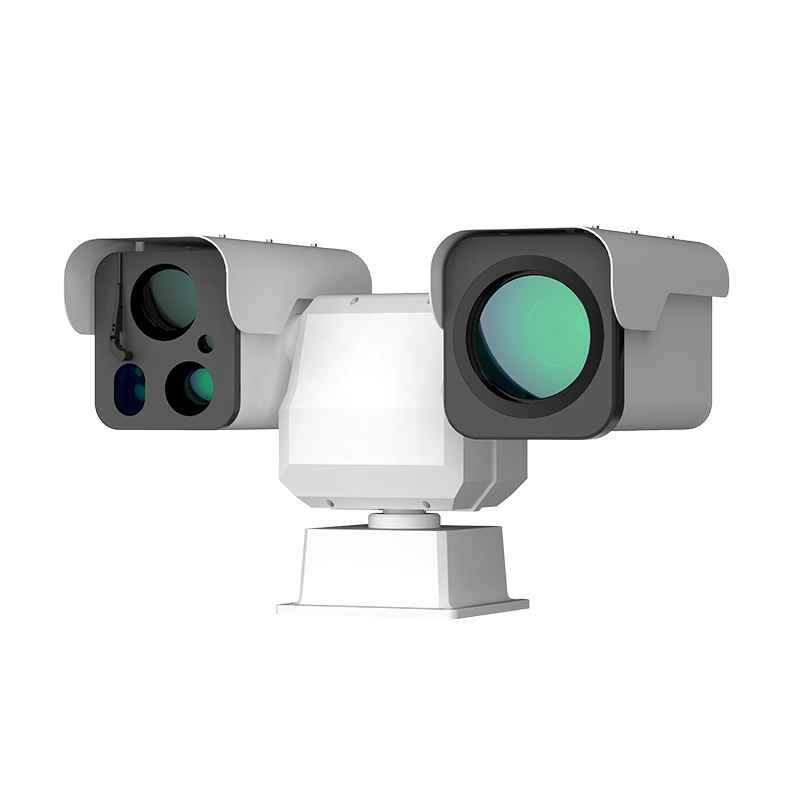

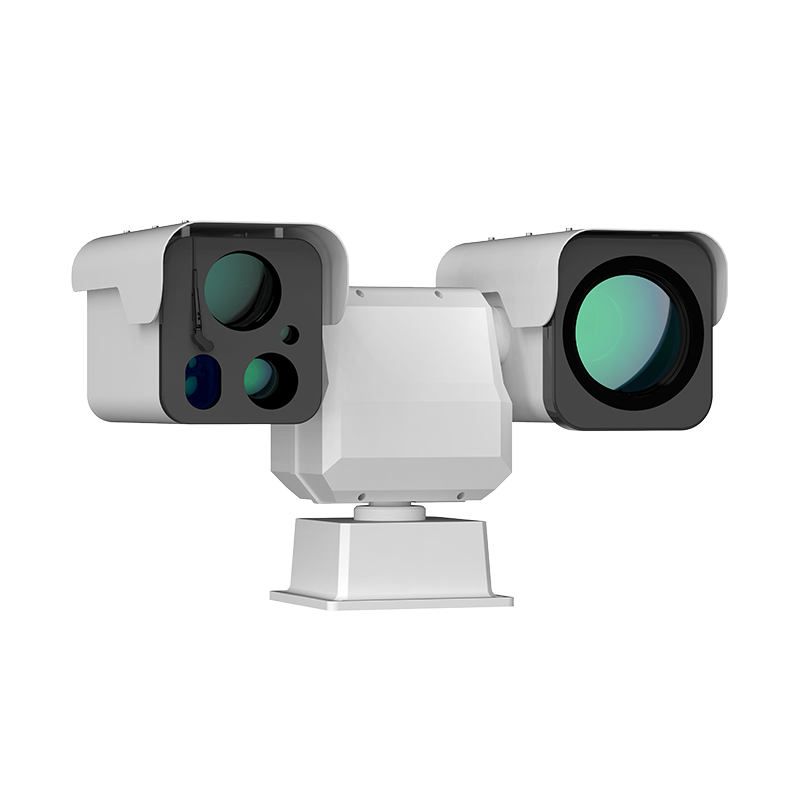

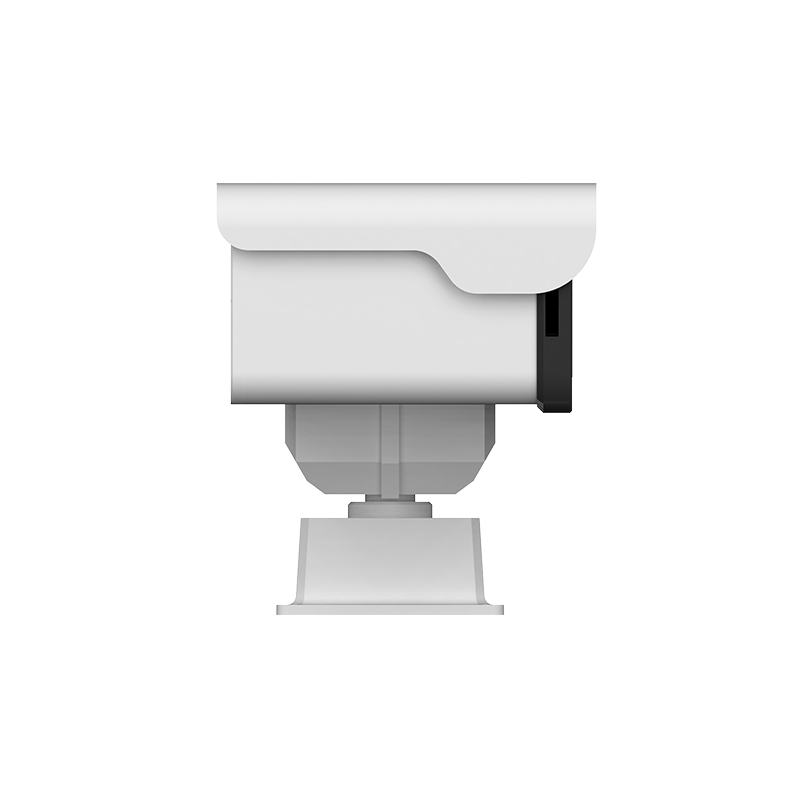

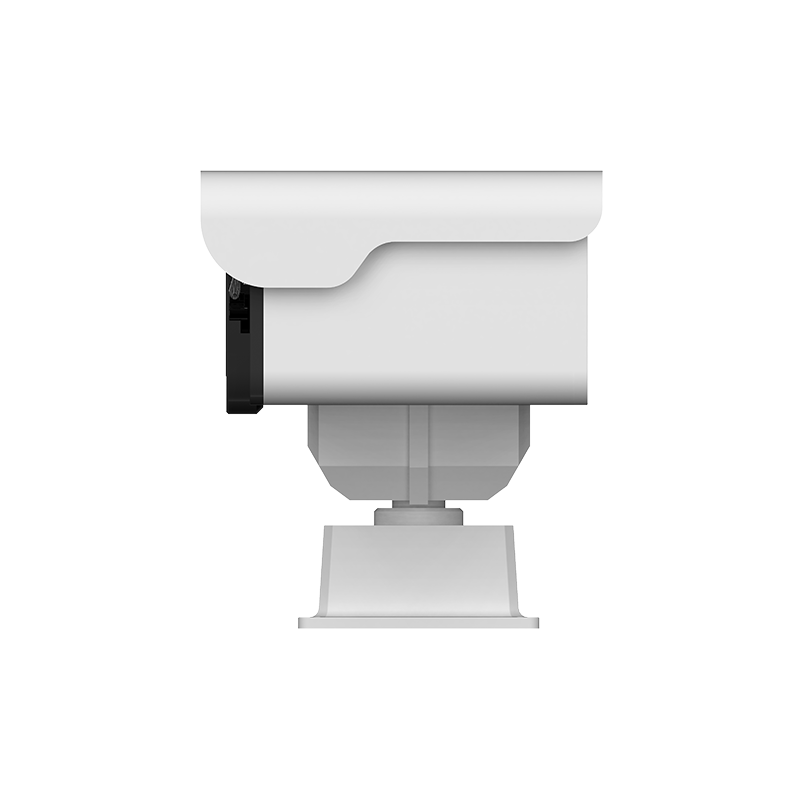

Multispectral medium-sized pan-tilt camera 1019018

នេះ Multispectral medium-sized pan-tilt camera 1019018 is a medium and long-distance multispectral camera designed specifically for forest fire prevention and key area perimeter security. It integrates a dual-spectrum imaging system of thermal imaging (640×512) and visible light (2688×1520), with optional laser ranging and laser fill light. The PC564 is equipped with a high-computing-power SOC, enabling target recognition of people, vehicles, ships and other objects, as well as fire point positioning functions. Combined with multiple patrol modes, it achieves all-time, all-weather security monitoring.

It features a self-developed core for farther and clearer imaging. It adopts the latest generation 12-micron uncooled infrared detector, integrated with leading infrared image algorithms. The multispectral imaging includes 320,000-pixel (640×512) thermal imaging, 4-megapixel (2688×1520) visible light resolution, a maximum laser fill light distance of 1.5km, and a maximum laser ranging distance of 6km.

It has a robust body with an IP66 protection rating, integrated with a high-speed, high-precision pan-tilt. The thermal imaging supports a maximum 30~150mm continuous zoom lens, and the visible light lens supports a maximum 10~550mm continuous zoom lens to meet long-distance detection needs. It supports single-IP dual-channel network video transmission, enabling simultaneous transmission of visible light and infrared videos.

It carries self-developed algorithms supporting multiple detection methods. It offers intelligent video analysis including regional intrusion, cross-border, and entry/exit area detection. It has a built-in intelligent smoke and fire point detection algorithm for efficient and accurate detection with reduced false alarms.

It comes with complete supporting software and supports secondary development. It provides supporting NVR and VMS software, supports standard protocols such as ONVIF and GB28181, and offers an SDK for secondary development. The Multispectral medium-sized pan-tilt camera 1019018 combines dual-spectrum clarity, long-distance capability and intelligent detection, serving as a reliable tool for critical security monitoring in forestry and key areas.
