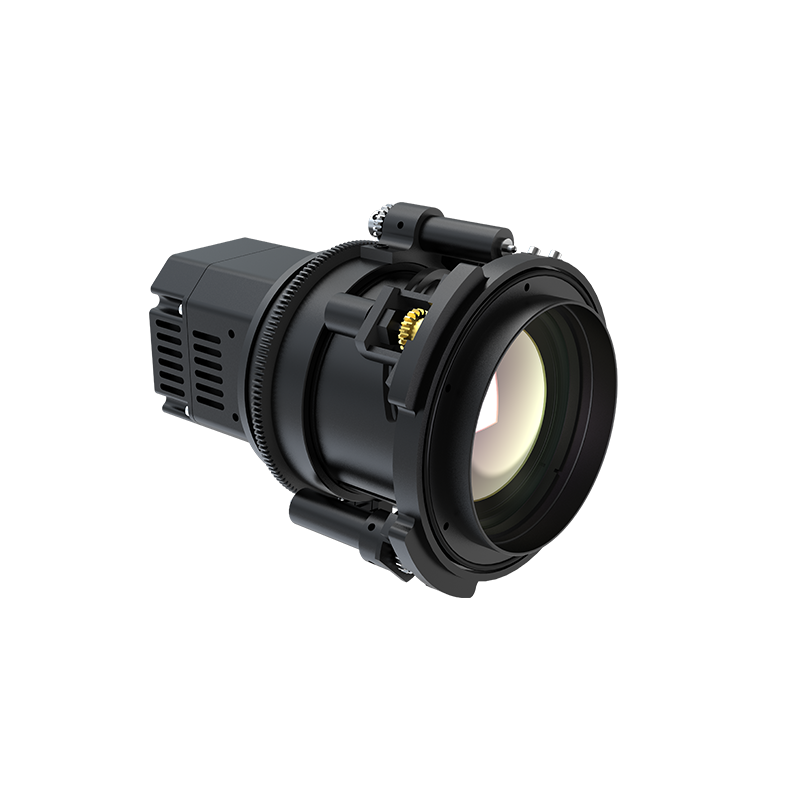

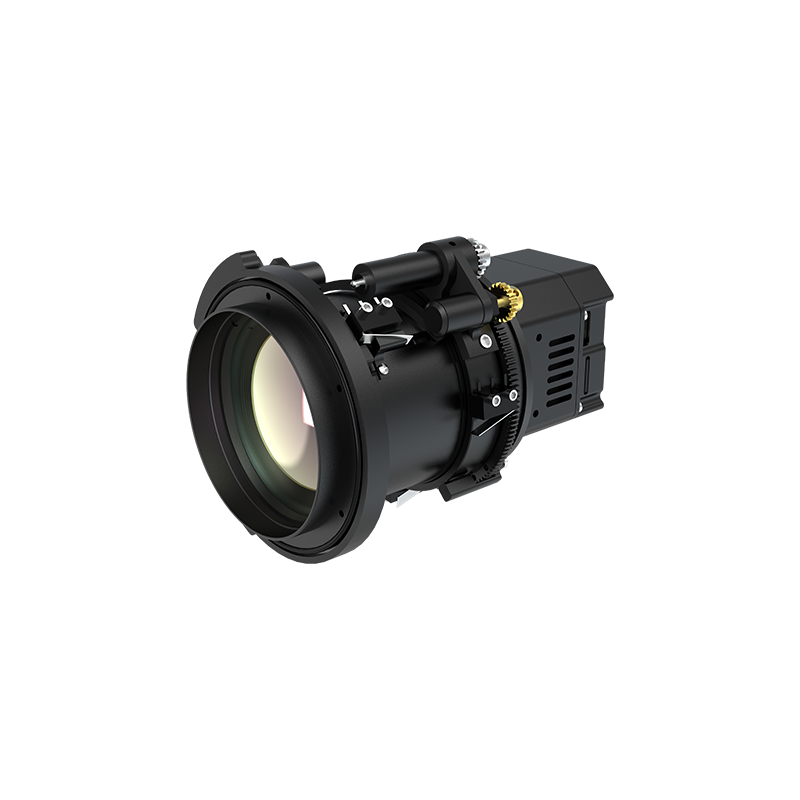

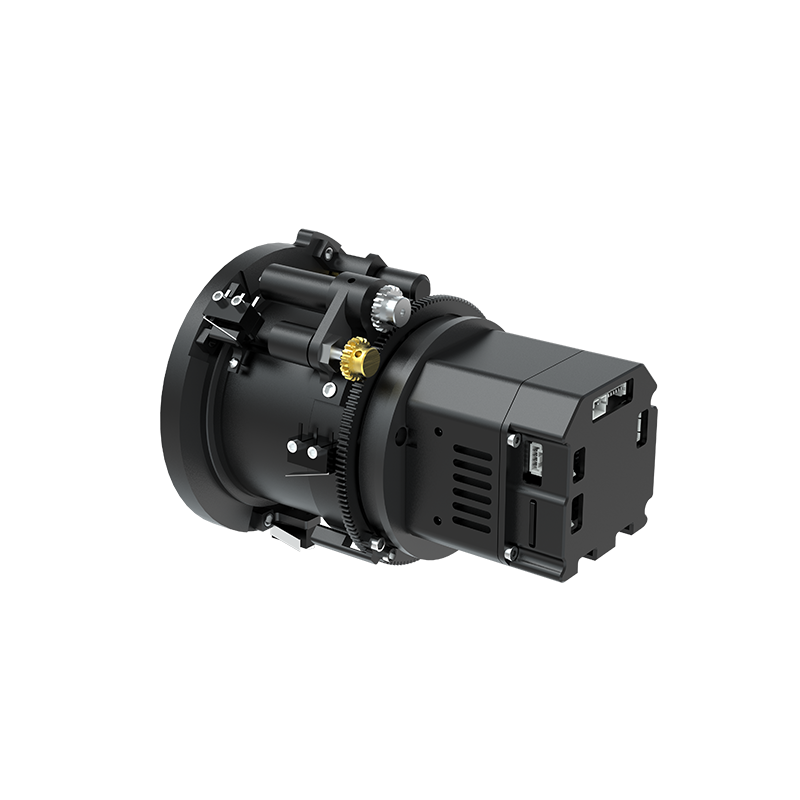

នេះ Uncooled gas detection camera 1019013 is a high-performance uncooled gas detection camera, adopting a 640×512 resolution infrared detector. It features high detection efficiency, long service life, stable operation and flexible system integration. It supports 9～35mm standard zoom infrared lenses and customization of other specification lenses, meeting gas detection needs at different distances. It supports multiple protocols and interfaces including RTSP, ONVIF and GB28181, provides an SDK, and caters to integration and secondary development requirements in various industrial sites. The device can detect multiple gases such as methane, propane, ethylene, methanol, ethanol and butanol, with important applications in oil and gas extraction, refining and processing, transportation, power and other fields.
It offers a high-efficiency gas leak monitoring solution. The GT260C uses a gas-specific high-sensitivity 640×512 resolution uncooled infrared detector, paired with leading gas imaging algorithms, enabling non-contact, large-range gas leak monitoring and helping quickly locate leak positions in industrial sites.
It adopts uncooled thermal imaging gas detector technology, boasting long service life and high stability. This technology balances gas imaging and system stability, greatly reducing equipment usage costs during the detection cycle. It also supports intelligent fire point detection, providing 24/7 uninterrupted monitoring services for factories.
It has two wavelength band options to support multiple gas monitoring. The 7.0μm~8.5μm gas detection band meets the monitoring needs of methane, ethane, propane, ethylene, methanol, ethanol, butanol and other gases in different industrial scenarios. The Uncooled gas detection camera 1019013 combines reliable gas detection, flexible configuration and strong integration capabilities, serving as a critical tool for industrial safety and leak management.
| ការបញ្ជាក់ | ព័ត៌មានលំអិត |
|---|---|
| Resolution | 640×512 |
| Pixel Pitch | 12μm |
| Response Waveband | 7.0μm~8.5μm |
| Detectable Gases | Methane, Ethane, Propane, Butane, Pentane, Hexane, Heptane, Octane, Epoxyethane, Epoxypropane, Ethylene, Propylene, 1-Butene, Methanol, Ethanol, Butanol, Ethylene Glycol, Isopropanol, Ether, Propionaldehyde, Benzene, Toluene, Ethylbenzene, Aniline, ល. |
| Lens Focal Length | 9~35mm |
| Focusing Method | Manual/Auto |
| Field of View | 52.2°×40.7°~12.5°×10.0° |
| Color Palette | Multiple pseudo-colors available including Black Hot/White Hot/Rainbow, ល. (20 modes in total) |
