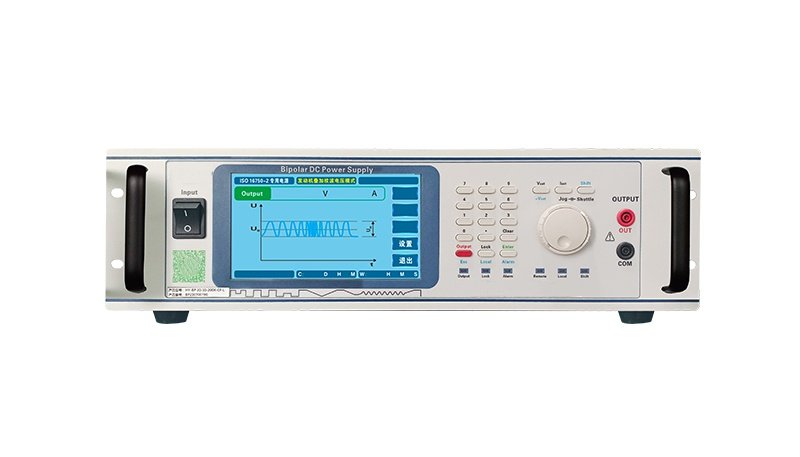

The High-speed power supply for automotive electronics testing 1006015 is a specialized power solution designed for diverse testing and application scenarios. It excels in automotive electronics testing, covering on-board electrical component tests (such as automotive central control boxes, automotive generators, steering system motors, on-board radar systems, DC motors/DC-DC converters, and windshield wipers) as well as on-board electrical part tests (including power circuit sensors, solenoids, connectors, relays, automotive fuses, and vehicle lamps).
Beyond automotive applications, it supports wireless power supply scenarios and magnetic drive testing (such as magnetic flux testing and B-H curve testing). It also functions as a power supply for magnetic field generation (e.g., Helmholtz coils), catering to the precise power needs of magnetic field-related experiments and industrial applications.
With high-speed response and stable output performance, it meets the rigorous requirements of automotive electronics testing—ensuring accurate and reliable results for component functionality and durability assessments. Its versatility extends to wireless power supply systems, providing consistent power delivery for R&D and production testing.
For magnetic drive and magnetic field generation, it delivers precise current control to support accurate measurement and analysis. The High-speed power supply for automotive electronics testing 1006015 combines specialized automotive testing capabilities with multi-scenario adaptability, making it an indispensable tool for manufacturers, R&D labs and quality inspection departments in the automotive, electronics and industrial fields.
| Spesifikasi | Details |
|---|---|
| Output Voltage | Maximum -100V~+100V |
| Output Current | 0~±500A |
| Output Power | 200W~10kW |
| Output Frequency Band | DC~20kHz/50kHz/100kHz/150kHz/200kHz/300kHz/500kHz (CV Mode) |
| Timing Function | – |
| Adjustable Internal Resistance | 10mΩ~500mΩ |
| Optional Industrial Control Operation | Available |
| Arbitrary Waveform Editing Function | Built-in waveforms applicable to: ISO16750-2, ISO7637.2; GB/T 28046.2; LV124; LV148; SMTC3800001; VW80000; G959024-2; GMW3172; ISO/DIS21780 |
| Technology | Adopts “New Linear Technology” to achieve low ripple/low noise |
| Response Speed | High-speed response, voltage response time ≤10μs |
| D/A Converter | 16-bit D/A high-precision converter, precise output |
| A/D Converter | 16-bit A/D high-precision converter, more accurate readback |
| Sense Compensation Function | Equipped with Sense compensation function, connected to the load end to form closed-loop compensation |
