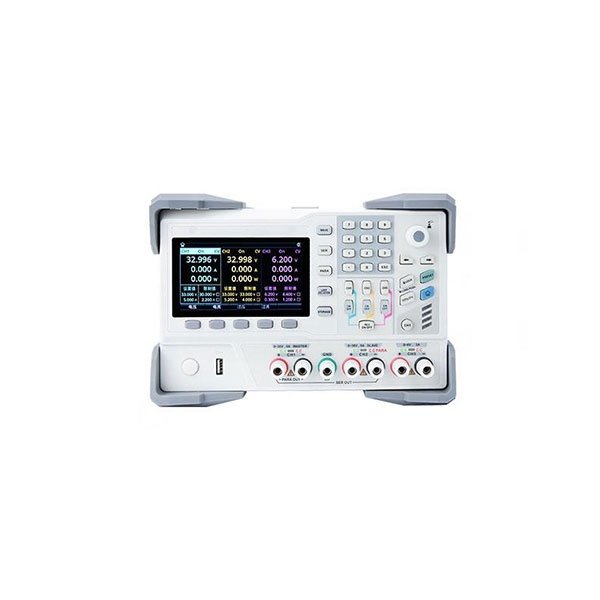

Ini Linear DC Power Supply features three independent outputs: two adjustable outputs (30V/3A/5A) and one fixed selectable output (1.8V/2.5V/3.3V/5V, with fine adjustment) that delivers 3A current. It supports CV and CC modes, and includes short-circuit and over-voltage protection functions to meet diverse testing requirements.
It comes with a DIGITAL I/O interface for remote control: You can use the DIGITAL I/O terminals to separately control the output on and off of the power supply’s CH1/CH2 channels.
It supports five groups of setting storage and recall: You can store and recall settings via M1~M5. Long-press to store and short-press to recall, making testing efficient and convenient.
It has a buzzer switch, key lock function, power-off memory function, and SET VIEW function:
- Buzzer switch: Choose to turn the buzzer on or off based on the working environment.
- Key lock function: Prevent accidental touches and incorrect settings during normal operation.
- Power-off memory function: Restore the last saved settings when powering on next time.
- SET VIEW function: Recall preset values with one key.
It provides high-precision 4-digit display for voltage, current, and power: The display resolution for voltage, current, and power reaches 10mV, 1mA, and 100mW respectively.
