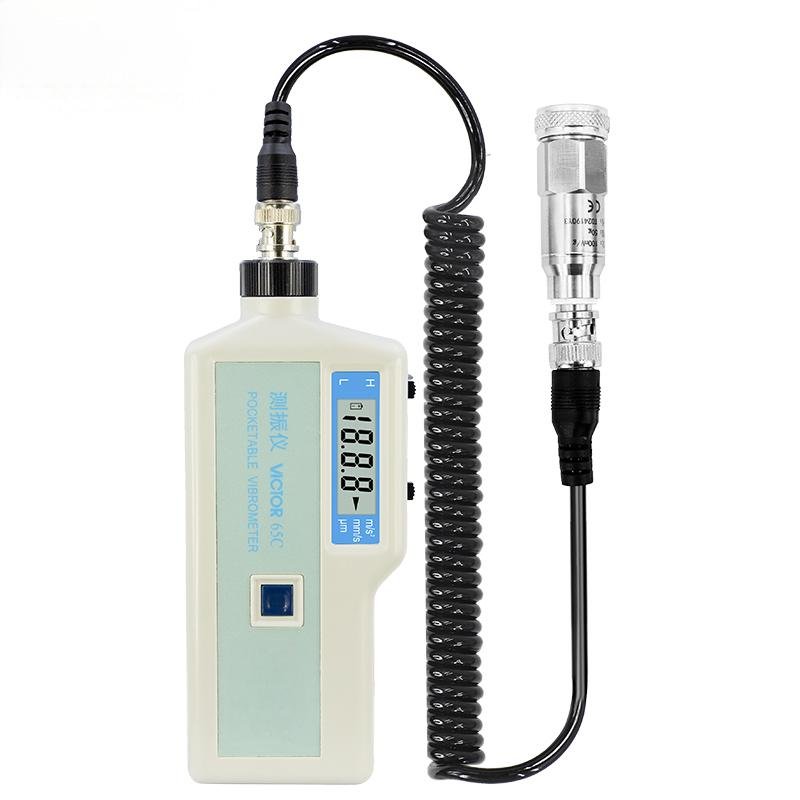

The Portable Vibration Meter 1009037 is a versatile device designed for precise vibration measurement, featuring a split and magnetic adsorption structure with a piezoelectric acceleration sensor. It is an essential tool for equipment condition monitoring and fault diagnosis in industrial settings, offering reliable performance and ease of use.
It measures vibration displacement (1~1999 um P-P), velocity (0.1~199.9 mm/s RMS), and acceleration (0.1~199.9 m/s² Peak). It also covers environmental temperature (-40~60 °C) and thermocouple temperature (0~500 °C). The frequency response range includes acceleration (10Hz~1kHz LO, 1kHz~15kHz HI), velocity (10Hz~1kHz LO), and displacement (10Hz~1kHz LO). Measurement accuracy is ±5% ±2 digits for vibration and ±(0.2%+2 °C) for temperature.
Equipped with low voltage indication (battery voltage <5.5V), data hold (one minute after releasing the measurement key), and stable display (fluctuation ≤ one resolution), it operates in 0~40°C, ≤80%RH, and 75~106Kpa. Powered by a 9V battery, it has a 13×49mm display, dimensions 185×68×30mm, and weighs 350g (including battery).
Whether for motor, bearing, or fan vibration testing, this Portable Vibration Meter 1009037 delivers accurate and comprehensive data, making it a valuable asset for maintenance and inspection professionals.
| Kategori | Ciri | Spesifikasi |
|---|---|---|
| Sensor | Structure | Split/Magnetic Adsorption |
| Type | Piezoelectric Acceleration Sensor | |
| Measurement Range | Vibration Displacement (P-P) | 1~1999 um P-P (RMS×2.828) |
| Vibration Velocity (RMS) | 0.1~199.9 mm/s RMS | |
| Vibration Acceleration (O-P) | 0.1~199.9 m/s² Peak (RMS×1.414) | |
| Environmental Temperature | -40~60 °C | |
| Thermocouple Temperature | 0~500 °C | |
| Frequency Response Range | Acceleration | 10Hz~1kHz (LO), 1kHz~15kHz (HI) |
| Velocity | 10Hz~1kHz (LO) | |
| Displacement | 10Hz~1kHz (LO) | |
| Others | Measurement Accuracy | Vibration: ±5% ±2 digits; Temperature: ±(0.2%+2 °C) |
| Low Voltage Indication | Display prompt when battery voltage <5.5V | |
| Data Hold Time | Approx. 1 minute after releasing measurement key | |
| Display Fluctuation | ≤ one resolution | |
| Operating Environment | 0~40°C; ≤80%RH; 75~106Kpa | |
| Bekalan kuasa | 9V battery | |
| Display Size | 13×49mm | |
| Dimensi | 185 (H) ×68 (W) ×30 (D) mm | |
| Weight | 350g (including battery) |
