RF vector signal generator 9kHz~22GHz 1007002

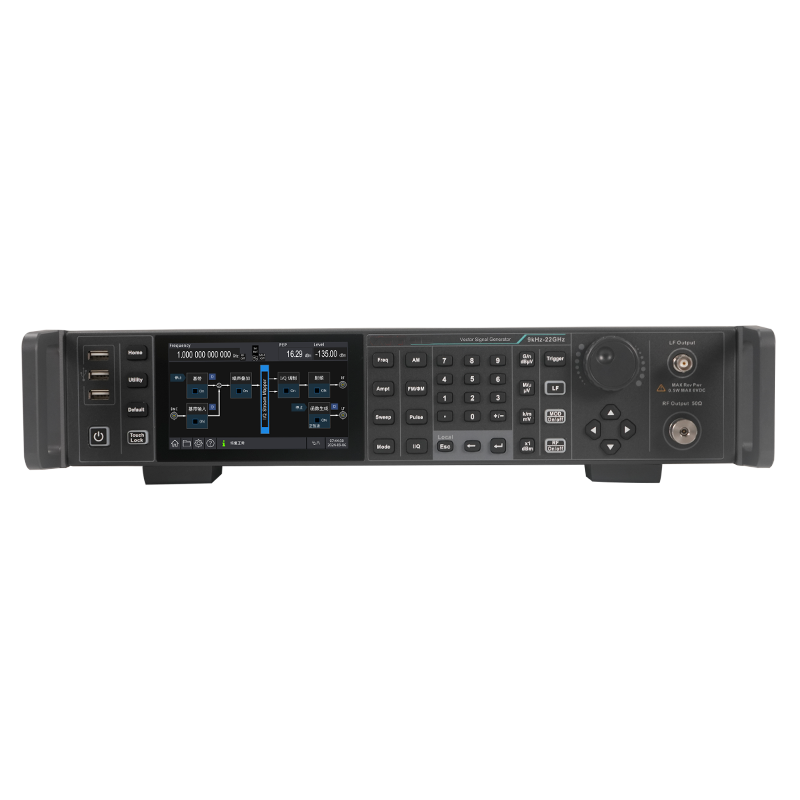

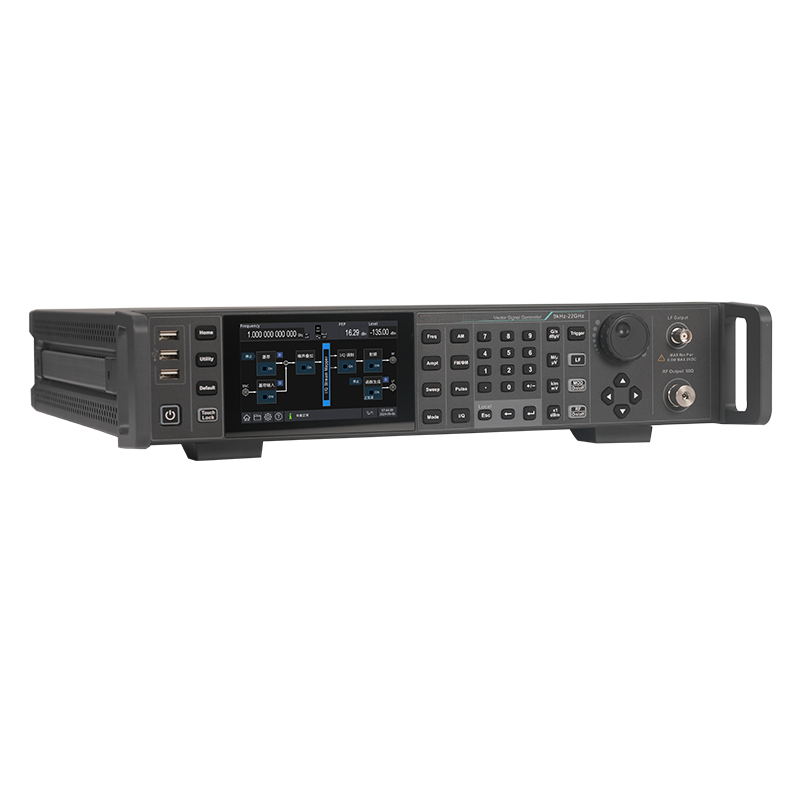

The RF vector signal generator 9kHz~22GHz 1007002 features a 2U standard height, blending compact design with robust performance for professional testing needs. It covers 9kHz~22GHz RF output frequency, reaches up to +25dBm output amplitude, and supports analog modulation (AM, FM, ΦM) and pulse width modulation at limited rates.

Its pulse modulator offers single, dual and burst pulse modes, with a minimum pulse width of 40ns and a 70dB off ratio. Vector signal modulation extends to 6GHz, supporting internal baseband signal generation and external analog baseband input with a maximum 150MHz modulation bandwidth. The internal baseband generator provides real-time modulation, local ARB and remote ARB modes.

Paired with SignalStudio software, it generates complex modulated signals such as WLAN, WCDMA, LTE and 5G/NR. A built-in 110dB dynamic high-precision programmable attenuator enables output down to -135dBm, making it ideal for testing microwave components like filters, amplifiers and receivers.

This generator integrates versatile modulation options, wide frequency coverage and precise amplitude control to meet diverse testing demands. The RF vector signal generator 9kHz~22GHz 1007002 stands as a dependable tool for electronics R&D and manufacturing, delivering consistent, high-quality signals for component and module testing.
