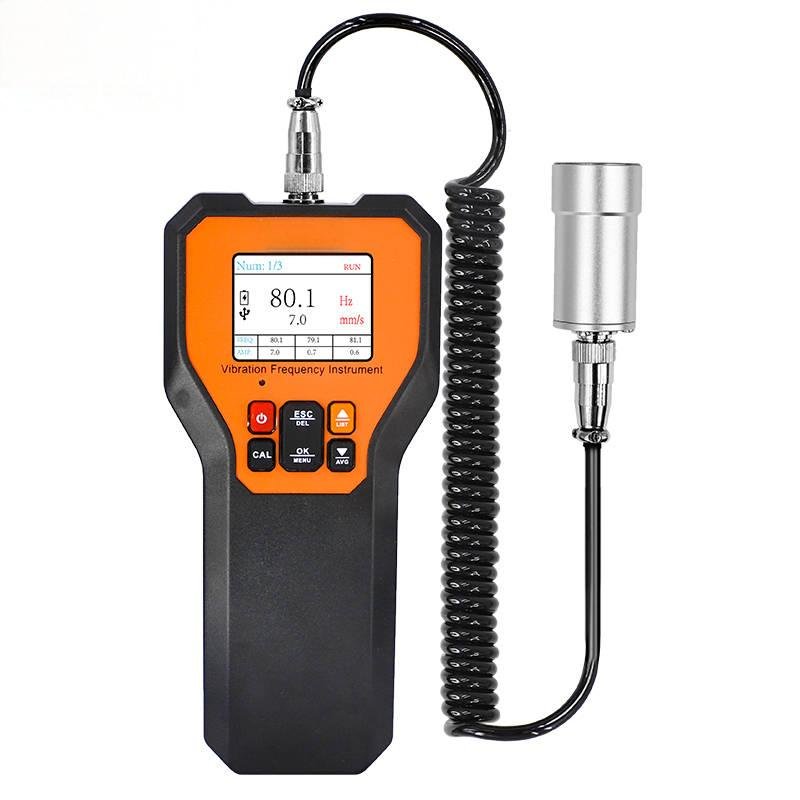

Vibration Frequency Measuring Instrument 1009038

The Vibration Frequency Measuring Instrument 1009038 is developed for measuring vibration frequency of various rotating equipment, suitable for machinery, power, petrokimia, and transportation industries. It features a built-in spectrum analysis module with FFT technology, enabling real-time vibration data analysis to obtain three sets of frequency values and corresponding amplitudes with the highest vibration energy, unlike traditional vibration meters that only measure total vibration values. This instrument is crucial for analyzing and diagnosing the operating status and faults of rotating equipment, such as imbalance, misalignment, wear, and looseness.

It measures vibration frequency from 3~1500Hz (up to 3~4000Hz with optional high-frequency acceleration sensor), with a frequency error of ±(1%+1Hz). It also covers vibration acceleration (0~199.9m/s²), velocity (0~199.9mm/s), and displacement (0~1999μm), all corresponding to the maximum vibration frequency point’s amplitude. The frequency resolution is ≤1Hz, and it has a 24-digit color LCD display.

Equipped with functions like data hold, review, and delete, it has a working current <150mA and a battery life >5 hours. Powered by a built-in 1000mAh lithium battery (USB charging), it has a display size of 40×30mm, weighs approximately 400g, and measures 180×85×28mm with a black and orange body.

Whether for routine equipment inspection or fault diagnosis, this Vibration Frequency Measuring Instrument 1009038 provides accurate and detailed vibration frequency data, making it an essential tool for ensuring the safe and efficient operation of rotating machinery.
