Automatic Wire Harness Terminal Machine automates the process of crimping terminals onto wire harnesses, replacing manual operations to ensure consistent crimp quality and reduce errors. It integrates wire cutting, stripping, and terminal crimping into one workflow, boosting production efficiency.
It’s widely used in automotive, electronics, and household appliance industries—where wire harnesses (e.g., car wiring, electronic device cables) are in high demand. It adapts to different wire gauges and terminal types, making it suitable for both small-batch customization and large-volume production.
Automatic Wire Harness Terminal Machine streamlines wire harness production by integrating three key steps—wire cutting, stripping, and terminal crimping—into one seamless workflow. It replaces manual operations that are prone to errors, ensuring every terminal crimp meets uniform quality standards, which is critical for reliable wire harness performance.
This machine adapts to various wire gauges and terminal types, making it ideal for automotive, electronics, and household appliance industries. Whether you’re producing car wiring, electronic device cables, or appliance harnesses, it handles both small-batch customization and large-volume production with ease. Its adjustable settings let you quickly switch between different product requirements without lengthy reconfiguration, saving valuable production time.
What sets this Automatic Wire Harness Terminal Machine apart is its balance of speed and precision. It operates at a high throughput rate to keep up with tight production schedules, while built-in sensors monitor crimp quality in real time—alerting operators to issues before they lead to defective products. It also reduces labor costs by minimizing manual intervention, letting your team focus on more skilled tasks.
Durable and easy to maintain, this machine is designed for long-term use in industrial environments. It integrates smoothly into existing production lines, helping you improve overall efficiency, cut waste, and deliver consistent, high-quality wire harnesses to your customers.
JM-600 Automatic Double-Head Terminal Insertion Machine Specifications
| Parameter |
Specification |
| Model |
JM-600 Automatic Double-Head Terminal Insertion Machine |
| Power Supply |
AC220V 50/60Hz 10A |
| Speed |
Approximately 1.8 seconds/piece (at shortest cutting length) |
| Gas Source |
0.5MPa, approx. 170N/min |
| Wire Color |
1-18 (6 colors as standard) |
| Can Cut Off Length |
45-1000mm (customizable) |
| Cut Off Precision |
±0.5%×L |
| Peeling Length |
0-5.0mm (±0.1mm) |
| Machinable Wire Diameter |
AWG#18-#28 (customizable) |
| Crimp Ability |
2T servo crimping machine × 2 units |
| Size |
W2000×D1800×H1900mm |
| Weight |
Approximately 700kg |
| Optional |

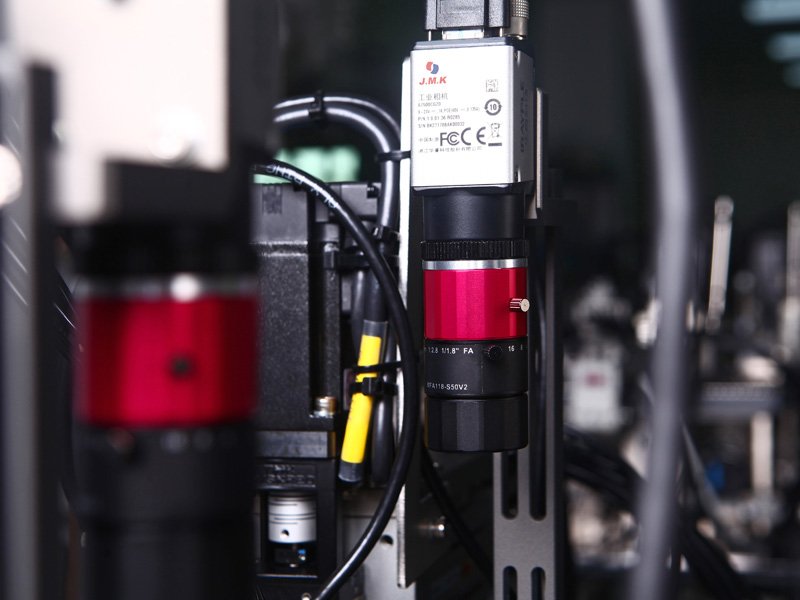

CCD Image Monitoring; Pressure Monitoring |
