Home Instrumentations Infrared Imager Medical-Grade Non-Contact Infrared Forehead Thermometer 1009022
Dual-spectrum tube camera   1019014
Dual-spectrum tube camera 1019014
Back to products
Thermal Imaging Camera 1009023
Thermal Imaging Camera 1009023

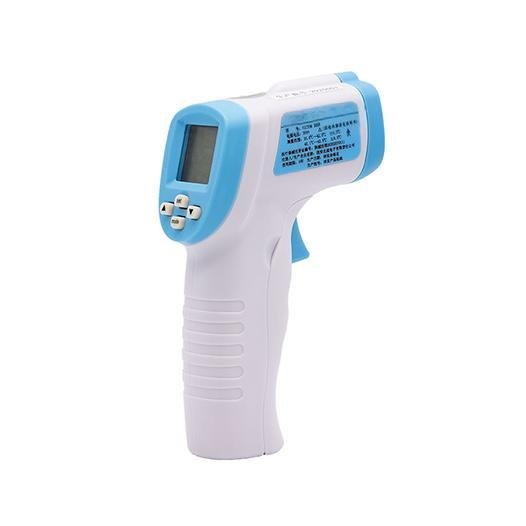

Medical-Grade Non-Contact Infrared Forehead Thermometer 1009022

Categories: Infrared Imager, Instrumentations
Share:
  • Description
Description

The Medical-Grade Non-Contact Infrared Forehead Thermometer 1009022 is a reliable device designed for accurate and quick body temperature measurement. It features a high-definition large screen with backlight display, making it easy to read results even in dim environments. This thermometer is a non-contact solution, ensuring hygiene and convenience, and is suitable for both medical and daily use.

It offers a measurement range of 35.0°C~42.9°C (95°F~109.2°F), with accuracy of ±0.2°C within 35.5°C~42.0°C and ±0.3°C within 42.1°C~42.9°C. The measurement time is less than 2 seconds, and the measurement distance is 3~5cm. It can store 32 sets of data and has an auto-shutdown function to save power. When the measurement is out of range, it prompts “HI” or “Lo”.

Powered by a 9V battery, the thermometer has a net weight of 130g and dimensions of 1549943mm. It operates in an environment with temperature 16~35°C and humidity -20~60°C (excluding battery), and can be stored in -20~50°C with humidity ≤85%. Accessories include an instruction manual, a certificate of conformity, and a 9V battery. This thermometer combines precision, ease of use, and portability, making it an excellent choice for temperature monitoring in various settings.

Feature Specification
Measurement Range 35.0°C~42.9°C
95°F~109.2°F
Measurement Accuracy 35.5°C~42.0°C ±0.2°C
42.1~42.9°C ±0.3°C
Measurement Time Less than 2 seconds
Measurement Distance 3~5cm
Auto Shutdown √
Data Storage 32 groups
Net Weight 130g
Accessories Instruction manual, certificate of conformity, 9V battery
Screen Display Mode High-definition large screen
Backlight Display √
Overrange Prompt “HI” or “Lo”
Power Supply 9V battery
Storage Temperature and Humidity -20~50°C, Humidity ≤85%
Working Environment Temperature 16~35°C
Working Environment Humidity -20~60°C (excluding battery)
Product Dimensions 154*99*43mm
