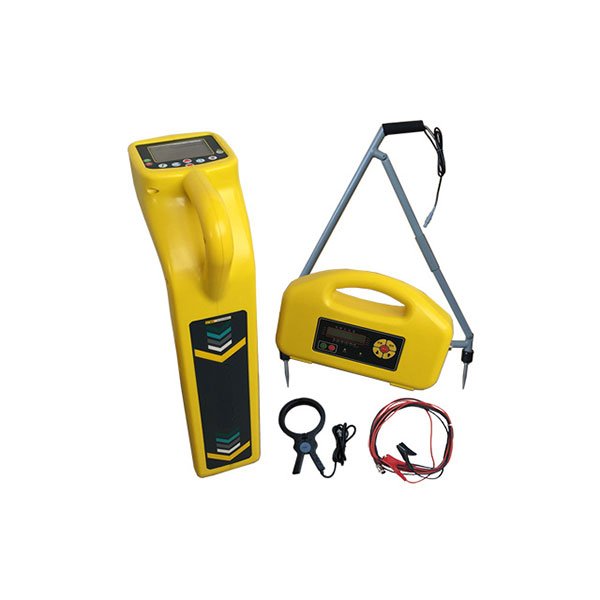

Underground Cable Fault Locator 1003008 is a versatile instrument designed to detect the path, depth, and faults of buried cables without excavation. This reliable cable fault detection system accurately locates short circuits, open circuits, and their precise positions, making it indispensable for telecommunications, power utilities, railways, industrial plants, and water supply departments.
Features:
-
Versatile Functions
-
Transmitter offers induction, direct connection, and clamp coupling modes
-
Receiver detects cable path, direction, and burial depth
-
Left/right arrows enable fast cable positioning; forward/back arrows and dB values locate faults
-
Backlit display supports emergency nighttime operations
-
Precisely locates short circuits, open circuits, and grounding faults
-
Measures current applied to cables
-
Multimeter function tests voltage, current, impedance, power, continuity, and insulation quality
-
External inductive clamp for non-direct signal application
-
-
High Positioning Accuracy
-
Multiple measurement modes (Peak, Wide Peak, Peak Arrow, Null) for cross-verification
-
Maximum value method locates cables via horizontal component changes
-
Minimum value method locates via vertical component changes
-
-
Multiple Depth Measurement Methods
-
Dual horizontal coil direct-reading method
-
Single horizontal coil 80% and 50% methods
-
-
User-Friendly Operation
-
Graphical display shows real-time parameters and signal strength
-
Automatic depth measurement with sensitivity adjustment
-
-
Long Operation Time & Low Cost
-
Large-capacity lithium battery supports full-day field work
-
-
Dual Power Supply
-
Uses built-in battery or external adapter for continuous operation
-
