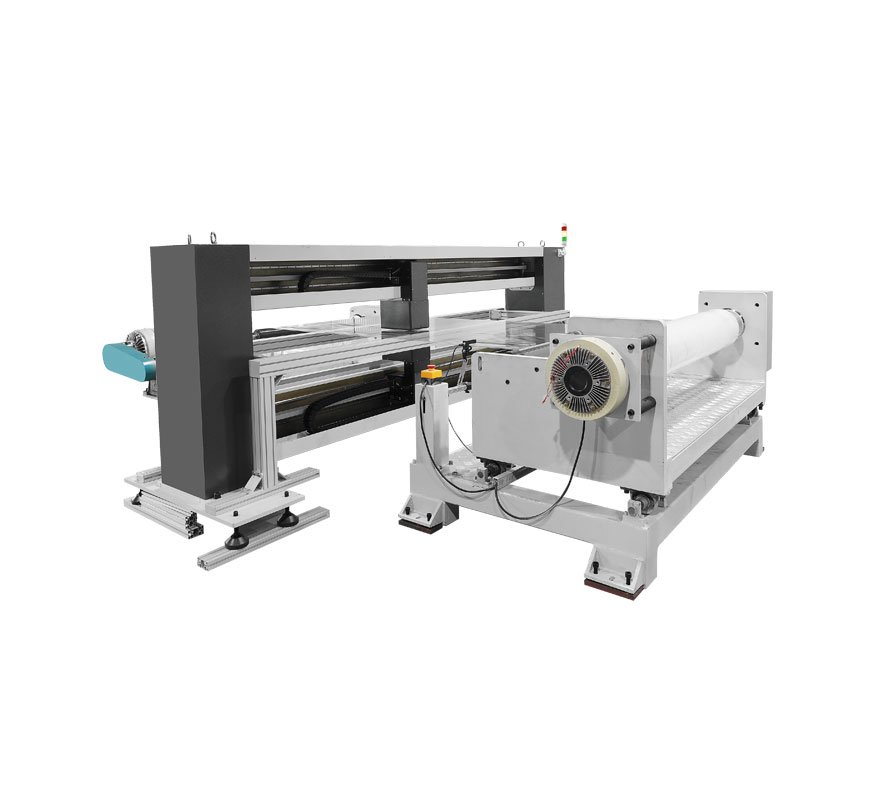

X-RAY Online Thin Film Thickness Gauge
The X-RAY Online Thin Film Thickness Gauge is a device that uses X-ray technology for real-time online measurement of thin film thickness, and is widely used in fields such as thin film production. Below is a detailed introduction to it:
Working Principle
The X-ray generator of the X-RAY Online Thin Film Thickness Gauge emits X-rays, which are projected onto the measured thin film. A portion of the X-rays is absorbed by the thin film, while the other portion passes through the film and is received by a detector. The system calculates the thickness of the thin film by analyzing the changes in X-ray intensity and the thickness-related properties of the film.
Technical Features
High Precision: For example, the XTC-10 aluminum foil online thickness gauge from Ruiqing Technology achieves a measurement accuracy of ±0.05μm for ultra-thin materials such as lithium battery pole pieces and food packaging aluminum foil.
Non-Contact Measurement: The X-ray thickness gauge adopts a non-contact measurement method, which does not cause any damage to the film surface and is suitable for thickness measurement of films of various materials and surface states.
Real-Time Online Detection: It can monitor changes in film thickness in real time, promptly detect abnormal thickness conditions, provide a basis for adjusting the production process, and ensure the uniformity and stability of thin film product thickness.
Rapid Measurement: It can complete thickness measurement in a short time, meeting the high-speed pace of online production without affecting the normal operation of the production line.
Application Fields
Plastic Film Industry: Used to measure the thickness of various plastic films, such as polyethylene (PE), polypropylene (PP), and polyethylene terephthalate (PET) films, ensuring that the film thickness meets production standards and product requirements.
Metal Foil Industry: Can measure the thickness of metal foils such as aluminum foil and copper foil. In lithium battery production, it accurately detects the thickness of aluminum foil and copper foil in pole pieces, helping to improve battery performance and quality.
Other Industries: Also applicable to the textile and non-woven fabric industry, paper industry, and composite material industry for measuring and controlling the thickness of related thin film materials.
X-RAY Online Thin Film Thickness Gauge
