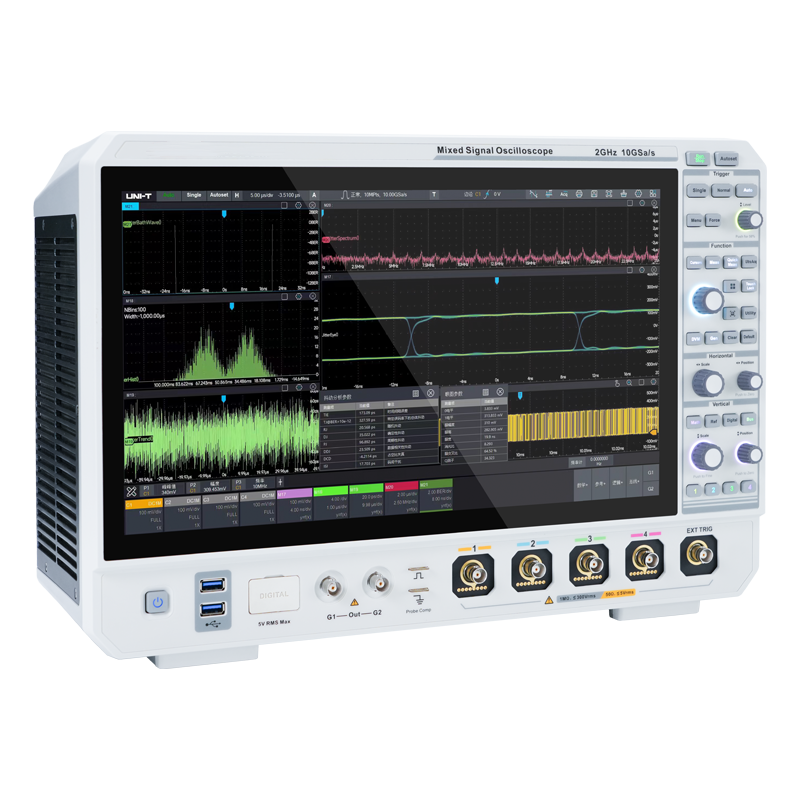

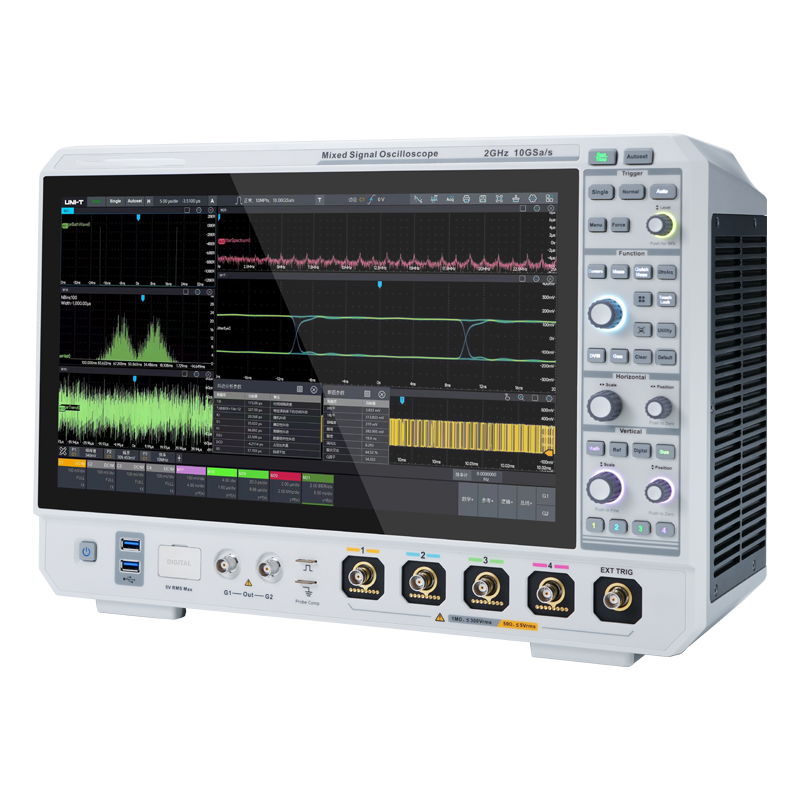

ที่ High-bandwidth mixed-signal oscilloscope 2.5GHz/2GHz/1GHz 1007006 delivers exceptional performance metrics, comprehensive analysis functions and user-friendly touch experience, helping you explore endlessly in the ocean of technology.
2GHz bandwidth marks the starting point of high-end oscilloscopes, while the MSO7000X series reaches up to 2.5GHz bandwidth—providing obvious advantages in high-speed signal analysis. The MSO7000X achieves a waveform capture rate of up to 2,000,000 wfms/s, and when combined with 1Gpts ultra-long memory depth, it significantly enhances the ability to capture abnormal signals as well as measure and analyze waveform details.
It runs on the Windows 10 64-bit operating system, providing users with a stable and scalable system platform. By offering an oscilloscope API interface, it greatly improves the system’s intelligence level to meet increasingly complex user needs. Whether for high-speed signal testing in R&D or detailed waveform analysis in manufacturing, this oscilloscope delivers reliable results. The High-bandwidth mixed-signal oscilloscope 2.5GHz/2GHz/1GHz 1007006 stands as a powerful tool for engineers, supporting in-depth exploration of signal characteristics and efficient solution of testing challenges.
| Specification | Details |
|---|---|
| Number of Analog Channels | 4 |
| Analog Bandwidth | 2.5GHz/2GHz/1GHz |
| Maximum Real-time Sampling Rate | 10GSa/s |
| Maximum Memory Depth | 1Gpts |
| Maximum Waveform Capture Rate | 2,000,000wfms/s |
| Digital Channels | 16(opt.) |
| Signal Source | 60MHz,2CH (opt.) |
