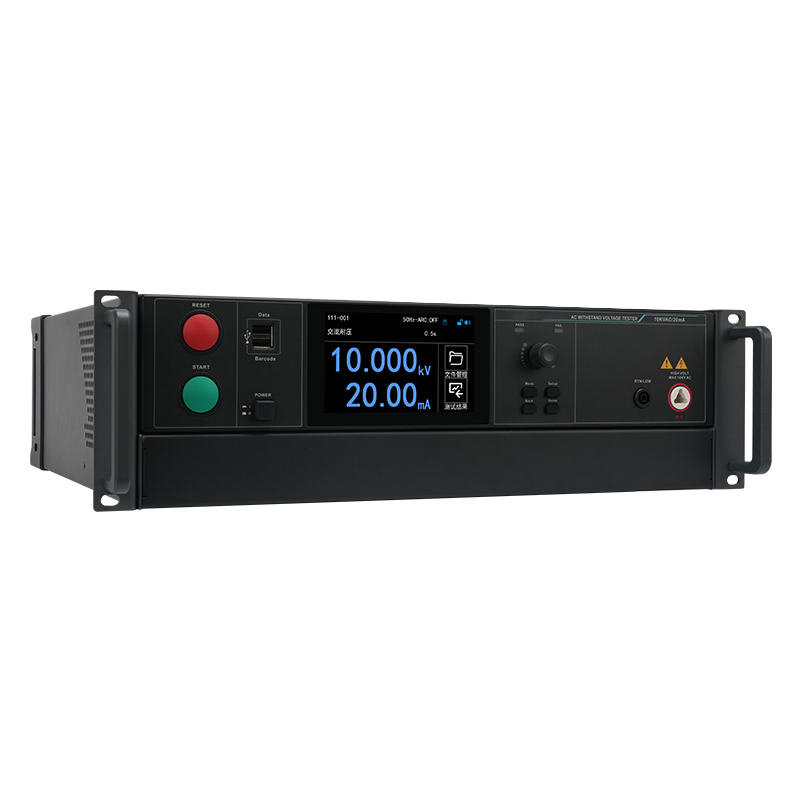

ที่ Ultra-high voltage programmable voltage tester 1007021 is designed specifically for ultra-high voltage and insulation material component testing. It delivers up to 12kV voltage output and 0.1μA current resolution, meeting stringent testing requirements.
This series features a 5-inch capacitive touchscreen with an icon-based menu design, making user operation intuitive and efficient. Its rich interface design and fully isolated circuit modules enhance anti-interference capability, suitable for automatic test systems requiring high safety and reliability.
It specializes in ultra-high voltage withstanding tests, particularly fitting applications in new energy, photovoltaic and other industries. Whether testing insulation materials for new energy vehicles or verifying components in photovoltaic systems, it provides stable and accurate performance.
The combination of high voltage capacity, precise measurement and user-friendly design ensures it can handle the most demanding testing scenarios. The Ultra-high voltage programmable voltage tester 1007021 balances technical rigor with operational simplicity, serving as a critical tool for professionals in high-voltage testing fields.
| Specification | Details |
|---|---|
| Number of Channels | 1 |
| Display | 5.0 Inch Capacitive Touch Screen |
| AC Withstand Voltage (ACW) | 10kV/20mA |
| DC Withstand Voltage (DCW) | 12kV/10mA |
| Insulation Resistance (IR) | 6kV/50GΩ |
| Collapse Voltage Test | ✔ |

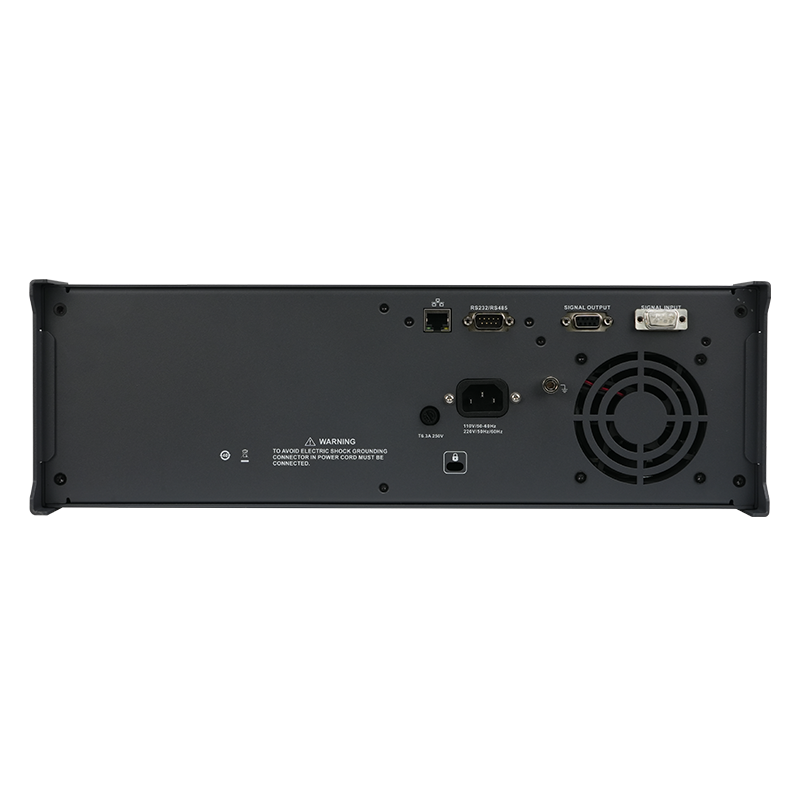

| Standard Interfaces | RS-232/RS-485, USB Host, LAN Handler, Barcode |
