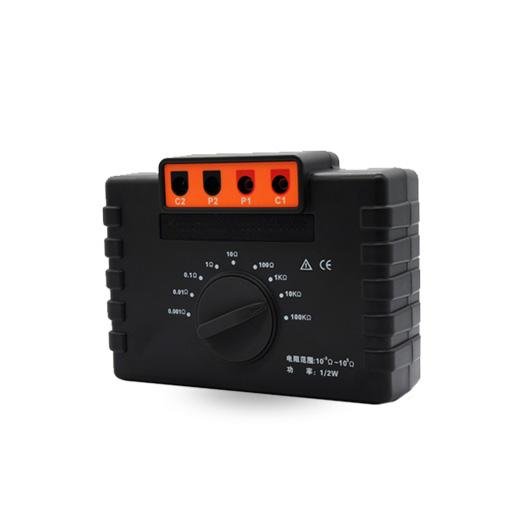

Le Standard Resistor for Lightning Protection 1009015 is a high-performance calibration device designed for grounding resistance testers, equipotential testers, and similar instruments. It features manual range operation, military-grade wire-wound resistors, and supports direct range switching without changing test wires, ensuring stable performance and robust structure.
This resistor offers a comprehensive range of specifications: 0.001Ω (2%), 0.01Ω (0.5%), 0.1Ω (0.2%), 1.0Ω (0.2%), 10Ω (0.05%), 100Ω (0.05%), 1KΩ (0.05%), 10KΩ (0.05%), and 100KΩ (0.05%), meeting diverse calibration needs. It adopts a 4-wire connection method for high accuracy, with a power rating of 1/2W and a temperature coefficient of ±25ppm, ensuring reliability across environments.
Housed in a durable casing (173mm×125mm×70mm, 360g), it comes with red and black 0.5m test wires (2 each). It operates in -10℃~40℃ (≤70%rh) and stores in -20℃~60℃ (≤80%rh), with insulation resistance ≥10MΩ (500V) and AC 3700V/rms withstand voltage. Compliant with IEC61010-1, CAT III 600V, and JJG166-1993, it’s ideal for calibration labs, lightning protection engineering, and military applications, delivering consistent performance for precise instrument calibration.
| Feature | Spécification |
|---|---|
| Function | Calibration for grounding resistance testers, equipotential testers, etc.. |
| Range & Accuracy | 0.001Ω; 2% |
| 0.01Ω; 0.5% | |
| 0.1Ω; 0.2% | |
| 1.0Ω; 0.2% | |
| 10Ω; 0.05% | |
| 100Ω; 0.05% | |
| 1KΩ; 0.05% | |
| 10KΩ; 0.05% | |
| 100KΩ; 0.05% | |
| Wiring Method | 4-wire method |
| Power | 1/2W |
| Temperature Coefficient | ±25ppm |
| Dimensions | 173mm×125mm×70mm |
| Mass | 360g |
| Test Wires | 2 red 0.5m, 2 black 0.5m |
| Working Temperature & Humidity | -10℃~40℃; ≤70%rh |
| Storage Temperature & Humidity | -20℃~60℃; ≤80%rh |
| Insulation Resistance | ≥10MΩ (500V between circuit and shell) |
| Withstand Voltage | AC 3700V/rms (between circuit and shell) |
| Suitable Safety Regulations | IEC61010-1, CAT III 600V, Pollution Degree, JJG166-1993 《Verification Regulation for DC Resistors》 |
