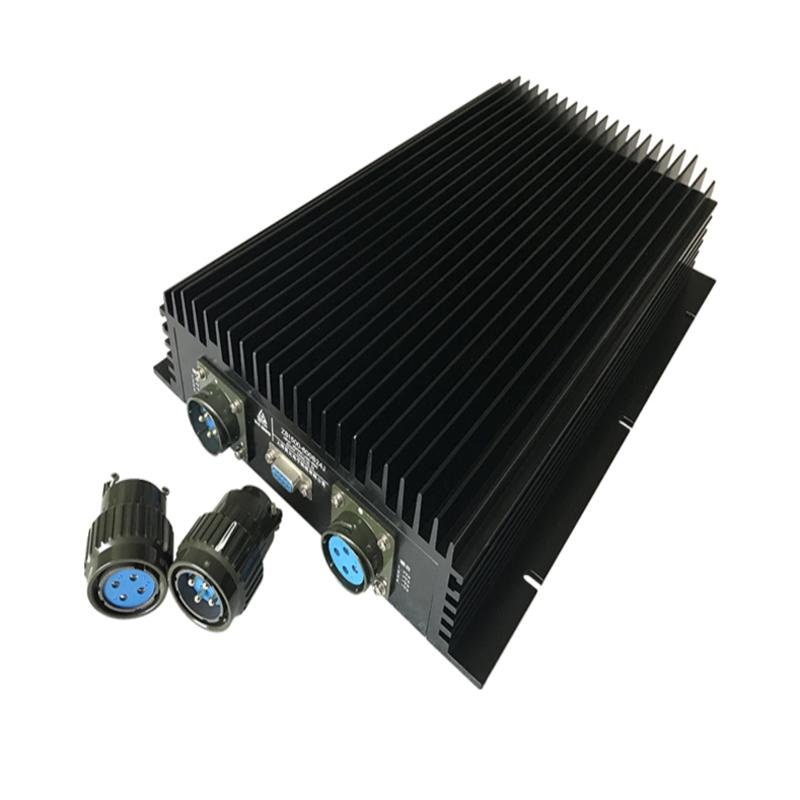

Capacitive Battery Charging Module Product Introduction
This Capacitive Battery Charging Module delivers excellent typical performance, with power ranging from 500W to 3000W to meet high-power charging demands. It supports multiple DC input voltage options, including 9-36, 18-72, 66-160, 200-400, and 400-900VDC, as well as AC input voltages like 88-132, 85-265, and 176-265VAC, ensuring wide compatibility with different power supplies. For output voltage, it offers diverse choices such as 13.8, 27.6, 48, 72, 96, 144, 288, 300, 360, 440, 480, and 650VDC, 适配 various charging scenarios.
The module comes in three package sizes: 196×164×51mm, 280×174×58mm, and 301×228×94mm, fitting different installation spaces. It supports potentiometer, analog, RS232/485, and CAN control methods for flexible operation. Users can adjust output voltage and current, and it provides fault warnings to ensure safe use. Its efficiency reaches up to 88%, reducing energy loss, and it offers optional wire outlet methods for easy installation.
With anti-backflow and no voltage drop features, the module maintains stable charging performance. It also has comprehensive protection functions to prevent risks like overvoltage, overcurrent, and overtemperature. It applies to various chemical batteries, including supercapacitors, lead-acid batteries, and lithium batteries. Additionally, its electrical parameters and dimensions can be customized to meet specific customer needs. This Capacitive Battery Charging Module combines high efficiency, versatility, and safety, making it ideal for diverse battery charging applications.
Power Solution Expert
Capacitor and Battery Charging Module Power Supply
ZS Series 500-3000W
- This product is suitable for charging various chemical batteries such as farad-level supercapacitors, lead-acid batteries, lithium batteries, etc.
- With constant voltage and constant current function, it can better protect supercapacitors or batteries.
- Six-sided metal shielding design, natural heat dissipation and anti-interference, dust-proof, moisture-proof, shock-proof, salt spray-proof, etc.
- Output voltage and current are adjustable.
- With good high and low temperature performance, the working temperature can reach -40℃ ~ +85℃.
- No manual duty, fully automatic working state.
- Please specify the nature of the battery or capacitor when ordering, so as to choose the correct charging mode.
General Characteristic
| Test Item | Test Condition | Minimum | Rated Value | Maximum | Unit |
|---|---|---|---|---|---|
| Isolation Voltage | Input/Output for 1 minute, Leakage Current <5mA | 1500 | – | – | VAC/VDC |
| Isolation Voltage | Input/Case for 1 minute, Leakage Current <5mA | 1500 | – | – | VAC/VDC |
| Isolation Voltage | Output/Case | 500 | – | – | VDC |
| Isolation Resistance | Input/Output | 200 | – | – | MΩ |
| Shock | 10~55Hz | 5 | – | – | G |
| Mean Time Between Failures (MTBF) | MIL-HDBK-217F2 | – | 5×10⁵ | – | hrs |
| Over-Current Protection | Full Input Voltage Range | – | Self-Recovery | – | – |
| Cooling Method | – | – | Free Air Convection | – | – |
| Case Material | – | – | Metal Material | – | – |
Input Characteristic
| Input Voltage Type | Nominal Value | Voltage Range | Nominal Value | Voltage Range | Nominal Value | Voltage Range |
|---|---|---|---|---|---|---|
| AC Input Voltage | 110VAC | 85-132VAC | 165VAC | 85-265VAC | 220VAC | 176-265VAC |
| DC Input Voltage | 12VDC | 9-18VDC | 24VDC | 18-36VDC | 48VDC | 36-72VDC |
| 18VDC | 9-36VDC | 36VDC | 18-72VDC | 110VDC | 66-160VDC | |
| 200VDC | 100-300VDC | 300VDC | 200-400VDC | 600VDC | 400-900VDC | |
| – | – | – | – | Non-standard input voltage range, please consult customer service |
Output Characteristic
| Test Item | Test Condition | Minimum | Rated Value | Maximum | Unit |
|---|---|---|---|---|---|
| Voltage Accuracy | Io=0.1…1.0 × Ionnom, Vi=Vi rated | – | – | ±1 | % |
| Voltage Regulation | Vimin≤Vis≤Vimax | – | – | ±0.2 | % |
| Load Regulation | Io=0.1…1.0 × Ionnom, Vimin≤Vis≤Vimax | – | – | ±0.5 | % |
| Ripple and Noise | 20 MHz Bandwidth | – | – | ±1 | % |
| Output Voltage Adjustment | – | – | ±20 | – | % |
| Output Current Adjustment | – | – | ±20 | – | % |
| Remote Control Function | – | – | High and low level control for on/off (optional) | – | – |
| Indication Function | – | – | Indicator light for DC input (optional) | – | – |
Environment Characteristic
| Test Item | Test Condition | Minimum | Rated Value | Maximum | Unit |
|---|---|---|---|---|---|
| Operating Temperature | Industrial Grade/Military Grade | -25/-40 | – | +85/+85 | °C |
| Maximum Case Temperature | Industrial Grade/Military Grade | – | – | +85/+95 | °C |
| Storage Temperature | Industrial Grade/Military Grade | -40/-55 | – | +105/+105 | °C |
| Relative Humidity | No Condensation | 5 | – | 90 | RH (%) |
| Temperature Coefficient | – | – | ±0.02 | – | %/°C |
