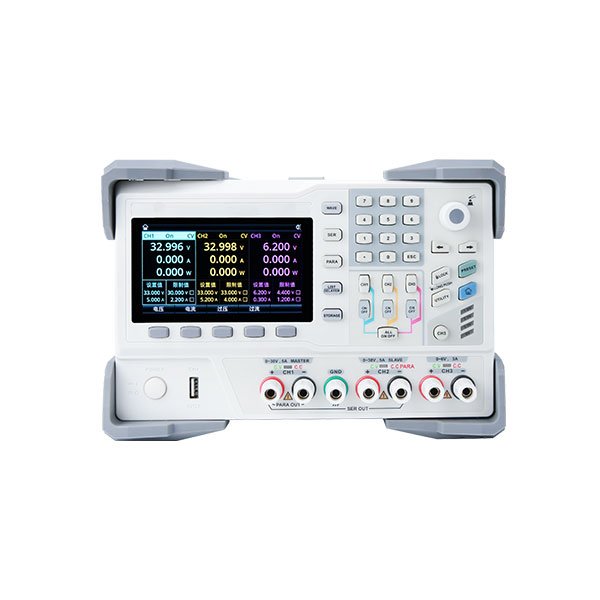

This Programmable Linear DC Power Supply comes with two 30V/5A outputs, one 6V/3A output, and one standard USB output. Its 4.3-inch TFT large screen provides a feature-rich interface, making functions like list/timer, trigger, monitor, waveform display, system settings, and output presets easy to use. The full product series includes a standard RS-232 communication interface as standard, supports SCPI protocol, and offers interfaces like Ethernet and Digital I/O for convenient remote control. It delivers ultra-low load regulation and low ripple noise output, with isolated channels. You only need one key to switch when using series-parallel functions. Its rich features apply widely in industrial control, hardware development & maintenance, scientific research, teaching, and laboratories, meeting diverse testing needs.
It has abundant remote control interfaces: RS232, Ethernet, Digital I/O, and master/slave USB interfaces come as standard. You can control it via remote Ethernet connection, or use RS232 and USB with upper computer software for software control.
It has list/timer functions: It supports list and delay settings. You can set up to 2048 data groups based on testing needs, with up to 99999 cycles. Used with waveform templates, it works well for cycle tests and aging tests.
It enables one-key series-parallel setup: You can achieve series-parallel connection between main channels CH1 and CH2 without external wires, simplifying wiring and making testing easier.
It has a LCD interactive interface: The 4.3-inch HD display offers a user-friendly, easy-to-operate human-machine interface. It shows real-time set output voltage/current, actual output voltage/current, and protection output voltage/current. All function interfaces are simple, comprehensive, and easy to operate.
