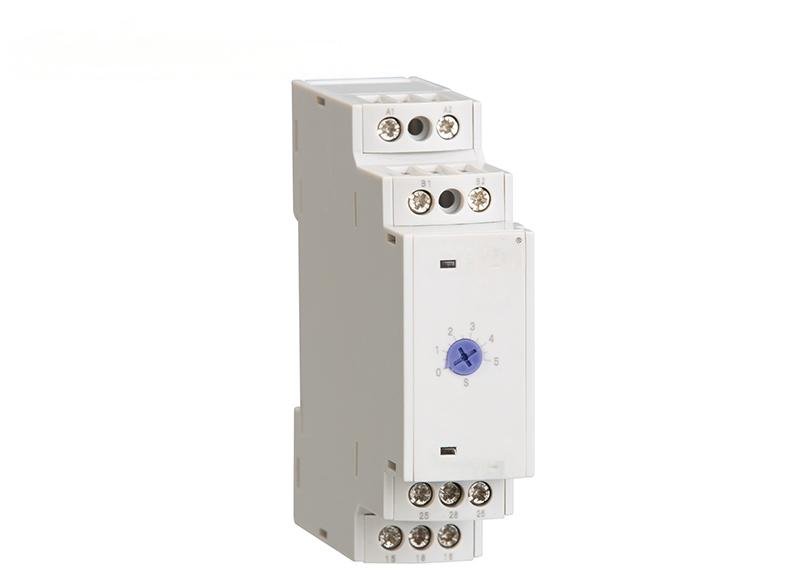

This Time relay  delivers stable performance for timing control scenarios. It supports multiple working power options: DC24V, AC24V, AC220V, and AC380V, ensuring compatibility with diverse electrical systems in industrial and commercial settings. Its delay range covers 1S, 5S, 10S, 30S, 60S, 120S, and 180S, meeting various short-delay control needs. The repeat error stays ≤5%, guaranteeing consistent timing accuracy for repeated operations.

It adopts a power-off delay working mode, which enables delayed actions after the power supply cuts off—ideal for processes requiring buffer time. The contact form includes two groups of delayed transfer contacts with a reset function, supporting flexible circuit switching and automatic reset after operations. The contact capacity reaches 1A AC250V (resistive load), suitable for low-to-medium power devices.

With an external size of 24.5×85.5×90.5mm, the relay features a compact design that saves installation space. It offers two installation methods: device-mounted and 35mm DIN rail-mounted, adapting to different cabinet layouts and assembly requirements. This Time relay combines versatility, accuracy, and ease of installation, making it a reliable choice for timing control in electrical circuits, industrial machinery, and automation equipment.
