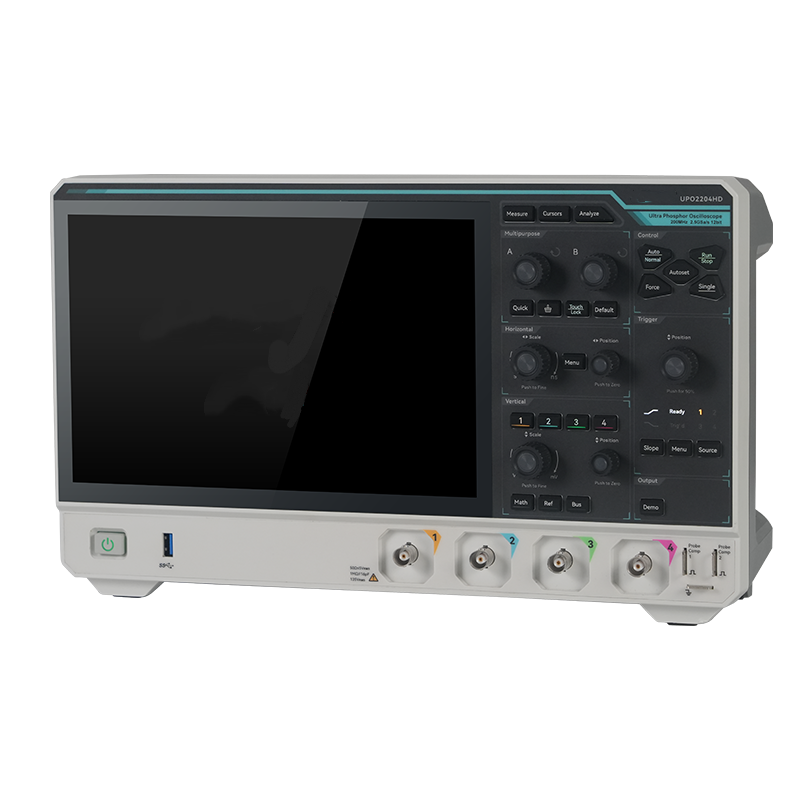

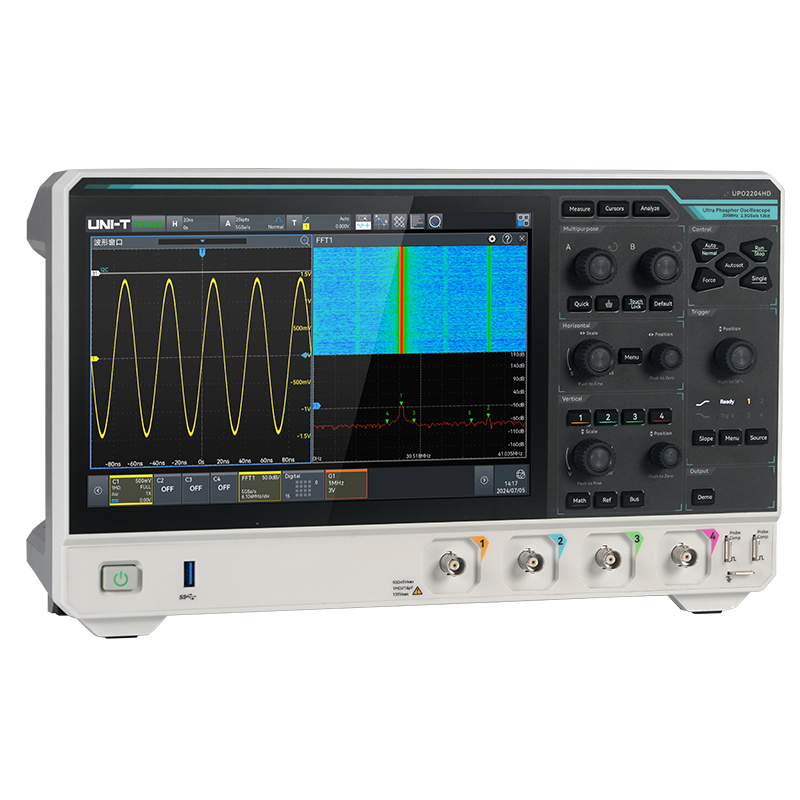

The High-resolution oscilloscope 200MHz/100MHz/70MHz 1007005 supports up to 4 channels, equipped with an R12™ 12-bit resolution ADC that boosts to 16-bit via ERES enhanced resolution. It features a maximum sampling rate of 2.5GSa/s, 100Mpts/CH memory depth and 1,000,000wfms/s waveform capture rate, ensuring high-quality waveform analysis.
This oscilloscope supports 9 serial protocol decodings and 12 power analysis functions. It also enables remote control via WebServer, making it highly versatile for testing and analysis tasks in fields like high-precision power testing, ripple measurement, component performance optimization and medical equipment.
It combines full functionality with strong performance, serving as a reliable testing tool for diverse professional scenarios. Whether for debugging circuits, validating power systems or optimizing component performance, it delivers accurate, efficient results. The High-resolution oscilloscope 200MHz/100MHz/70MHz 1007005 meets the demanding needs of electronics R&D and manufacturing, providing users with comprehensive testing capabilities to streamline workflows and ensure product quality.
| Specification | Details |
|---|---|
| Number of Channels | 4/2 |
| Bandwidth | 200MHz/100MHz/70MHz |
| ADC Resolution | 12bit |
| ERES | 16bit |
| Maximum Sampling Rate | 2.5GSa/s |
| Maximum Memory Depth | 100Mpts/CH |
| Maximum Waveform Capture Rate | 1,000,000wfms/с |
