AVI Inspection Equipmen is widely used across manufacturing industries for quality control.
It plays a key role in PCB production, detecting open circuits, short circuits, and surface defects on boards. In automotive component manufacturing, it inspects parts like connectors and sensors for appearance flaws or dimensional errors. It also serves in semiconductor packaging to check for chip scratches or packaging defects, and in electronics assembly to verify correct component placement on circuit boards. Additionally, it’s applied in plastic and metal part production to identify surface blemishes, ensuring end products meet quality standards.
Our AVI Inspection Equipment (Automatic Visual Inspection) integrates advanced optics, high-speed image processing, and precision mechanics to deliver top-tier quality control for manufacturing lines. It streamlines defect detection by automatically identifying flaws, ensuring consistent results that manual inspections often struggle to match.
This equipment excels in three core areas: automation, speed, and accuracy. It operates with minimal human intervention—from loading workpieces to sorting OK/NG products—greatly reducing labor intensity for your team. Its high-speed scanning handles 300–600 units per hour, keeping up with high-volume production demands. Meanwhile, its 38um resolution catches tiny issues like open circuits, short circuits, or surface blemishes that might go unnoticed otherwise.
Designed for versatility, our AVI Inspection Equipment works with various PCB types, including copper, gold, and nickel surfaces, as well as resin, aluminum, and ceramic bases. It supports common engineering data formats like ODB++ and Gerber, and uses automatic edge alignment to ensure precise positioning. With a compact footprint (L4000×W1000×H1800mm) and stable performance, it fits seamlessly into existing production setups, helping you cut waste and improve overall product quality.
Whether for electronics, automotive components, or semiconductor packaging, this equipment becomes a critical asset to maintain strict quality standards and boost your production efficiency.

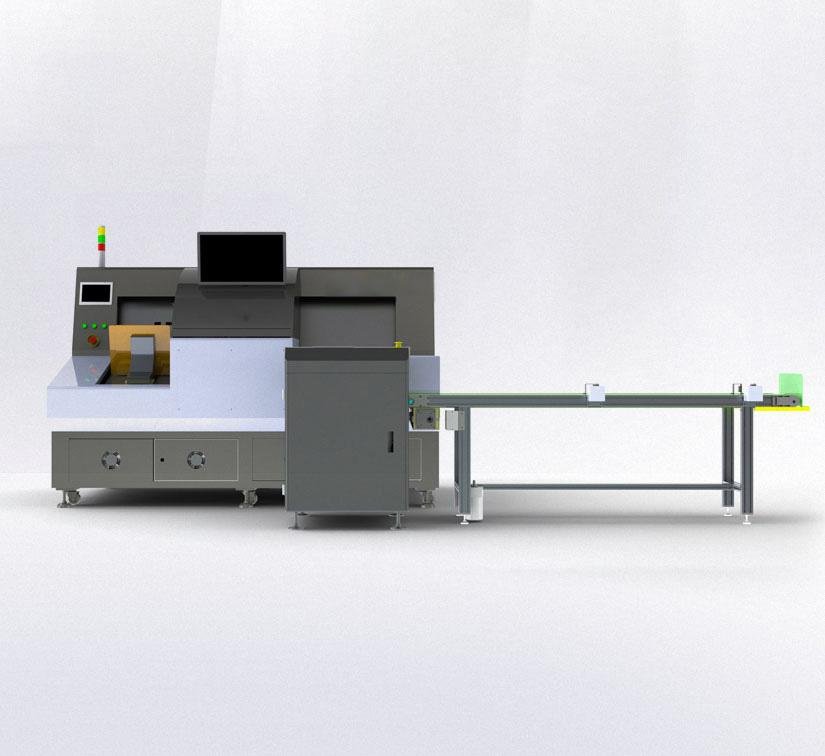

AVI Inspection Equipment
| Parameter | Specification |
|---|---|
| Resolution | 5μm |
| Single-sided/Double-sided Detection | Double-sided |
| Inspection Content | Pad, Solder Mask, Silkscreen |
| Inspection Area | 150×400mm |
| PCB Type | Copper Surface, Gold Surface, Nickel Surface; Resin-based, Aluminum-based, Ceramic-based |
| Automation | Vertical Type / Automatic Loading/Unloading |
| Camera Configuration | 4 Units of 15K Line Scan Color Cameras |
| Optical System | LED Multi-angle Combined White Light |
| Inspection Speed | 500 pcs/hour |
| Dimension/Weight | L2200×W1200×H1600mm / 1000kg |
| Engineering Data | ODB++, Gerber |
| Alignment Method | Automatic Edge Alignment |
| Power Supply/Air Supply | Single-phase 220V 5KW / 5kg Compressed Air with 8mm Pipe Connector |
